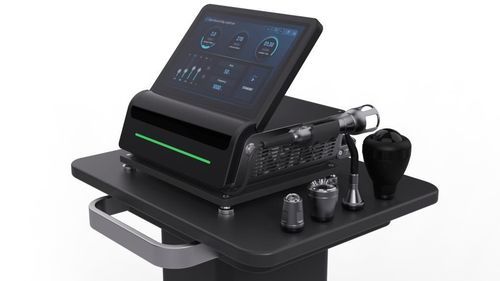

Equine Veterinary photostimulation laser GBOX PLUS

for horsestransportablefor rehabilitation

Overview
Class 4 Laser Therapy – The Cutting-Edge Recovery Solution for Equine Athletes. Non-invasive Class 4 laser therapy penetrates deep into tissues, accelerating healing, reducing inflammation, and helping horses recover faster.

• Ideal for:
• Post-race recovery
• Tendon injuries
• Arthritis
• Pain management
• Preventive care

Benefits

• Non-invasive & Painless – avoids the risks of injections or surgery
• Accelerates Healing & Enhances Performance – reduces inflammation and promotes tissue repair
• Reduces Pain & Improves Flexibility – helps horses regain competitive edge faster
• Short Treatment Time, Fast Results – sessions typically take 5–15 minutes

System & Performance
Multi-wavelength therapy designed for deep and superficial targets. Wavelength combinations and output modes are configurable to match clinical needs.

• Wavelength combinations: 1064nm + 980nm + 915nm + 810nm + 635nm
• Output modes (examples shown on page): Continuous Wave (CW) 40W + 2W (635nm); Intense Superpulse (ISP) 55W + 2W (635nm)
• Frequencies range: 0.2 to 20,000 Hz & ISP mode
• High-power Class 4 laser technology for deep tissue penetration
• Portable form factor suitable for racehorse facilities, veterinary clinics and equine care centers

GBOX PLUS – Key Features

• Create and save personalized treatment protocols
• 4/5 wavelengths selectable and independently controllable; each wavelength targets different tissue depths and effects
• INTENSE SUPERPULSE (ISP) Mode: variable duty cycle pulsing allowing tissues to cool between bursts to reduce burn risk while stimulating deeper tissues, promoting ATP production, collagen synthesis and improved circulation
• Powerful battery management: full power ~1 hour; low power up to ~4 hours; changeable battery; suitable for stationary 7-day operation
• Smarter software operation: 10.1" HD touchscreen Android platform with quick parameter selection based on condition, BMI and skin tone; Wi‑Fi enabled for software updates
• Five handpiece optics: 30mm open zoom lens; 30mm curved contact lens; 10mm curved contact lens; 5mm TMJ lens; 30mm 360° rolling large massage ball lens

Clinical Results / Case Studies

• Reported case: an injured racehorse achieved ~80% tissue healing within 3 weeks of laser therapy
• Reported improvement: a top equestrian team reduced recovery time by ~40% using Class 4 laser therapy
• Testimonials on the page report significant reduction in recovery time and improved performance after a few sessions

Caractéristiques / spécifications techniques

• Frequencies: 0.2 to 20,000 Hz & ISP
• Diode: High powered solid-state diode module
• Weight: 265(W) * 270(L) * 120(H) mm
• Dimensions: 4.2 kg without battery; 4.8 kg with battery
• Battery: Full power ~1 hour; Low power up to ~4 hours; 7 day (stationary) operation; changeable battery
• Technology Platform: 10.1 Inch HD touch screen; Android platform; Wi‑Fi enabled software updates
• Hand Piece Optics: 30mm open zoom lens; 30mm curved contact lens; 10mm curved contact lens; 5mm TMJ lens; 30mm 360° rolling large massage ball lens
• Customizable Protocols: Yes
• Unlimited Patient History Data: Yes
• Laser Cable: fibers of 400 μm and 600 μm with SMA905 connector
• Pain Scale: Yes
• BMI Tone Selection: Yes
• Skin Tone Selection: Yes
• Wavelength Combinations (nm): 1064nm + 980nm + 915nm + 810nm + 635nm
• Wavelength Selectability: Any combinations + independent control
• Intense Superpulse Peak (ISP): 55W + 2000 mW (635nm)
• Continuous Wave Power (CW): 40W + 2000 mW (635nm)
• Folding Screen: Yes
• Shoulder Sling / Portable: Yes
• Clinical Support: Yes
