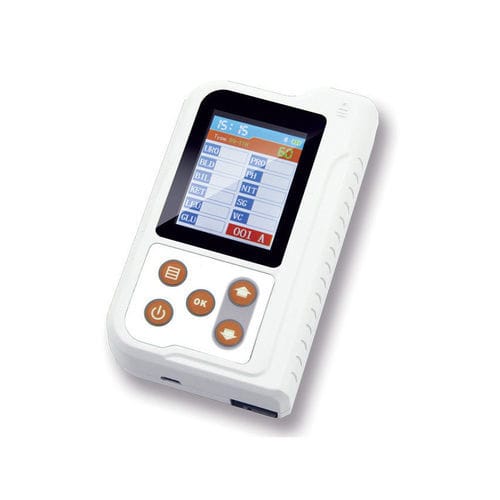

Point-of-care urine analyzer 24046

portableUSBBluetooth

Product information
Stock availability: 9
Product Code: 24046
Unit of sale: 1 pc
Minimum order: 1
Type: IVD - Professional Use
Class: A
RDM (NSIS): 2402832
CND: W020101020101
EAN: 8023279240467
PARAF: 977810593

Description
GIMA urine analyzer with Bluetooth is an instrument using optical RGB tricolor test theory for clinical urine inspection. It is designed for quick, easy operation and reproducible results in point-of-care environments.

Features

• High-luminance white LED with long life and stable output
• Large 2.4" LCD display
• User-friendly interface
• Monitoring of the whole testing process with audible prompts
• Data transmission via Micro USB and Bluetooth

Application

• Point-of-care testing for clinicians
• Chronic disease monitoring, long-term follow-up of nephrotic patients
• Health examinations
• Use as a telemedicine terminal

Tested parameters

• Glucose (GLU)
• Bilirubin (BIL)
• Specific gravity (SG)
• pH
• Ketone body (KET)
• Occult blood (BLD)
• Protein (PRO)
• Urobilinogen (URO)
• Nitrite (NIT)
• Leukocytes (LEU)
• Ascorbic acid (VC)

Can be used only with Urinalysis strips 24076-7.

PHMS App
Free app to save data, review reports and results.

Packaging and documentation
Multilingual manual and box: GB, FR, IT, ES, SE.

Technical specifications

• Working mode: One-step
• Internal language: Italian and English
• Display: 2.4" LCD, resolution: 320x240
• Data storage: 500 sample data
• Principle: RGB tricolor test theory
• Communication interface: Micro USB, Bluetooth wireless
• Repeatability: CV = 1%
• Stability: CV = 1%
• Record mode: LCD display, flash ROM data storage
• Power supply: Built-in rechargeable lithium battery 3.7 V, 1800 mAh
• Host computer: DC 5 V, 1 A
• Adapter: AC 100-240 V, 50/60 Hz
• Dimensions - Weight: 126 x 73.5 x h 30 mm - 0.18 kg
