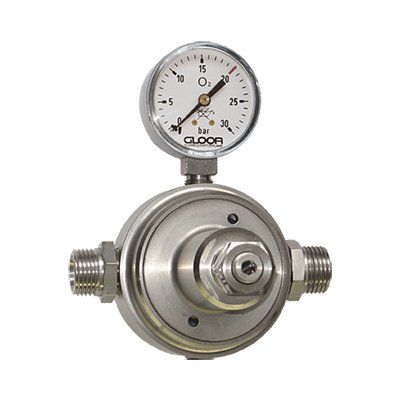

O2 pressure regulator PM0117E

airCO2N2O

for installation in flow direction from the right or from the left the application is mainly intended for central gas supply systems in hospitals and clinics The field of application of the medical pipeline regulator is mainly found in the area of central gas supply systems for medical gases. The pipeline regulator is used either as a supply regulator in a cold vaporizer (liquefied gas tank) line or as a second pressure stage in medical gas supply systems with gas cylinders or racks. The adjustment of the pressure is effected with the help of a tool. Once adjusted, the pressure is secured by means of a counter nut to prevent any unintended or unauthorised adjustment of the pressure. The pipeline regulator is equipped with a working pressure gauge and in the inlet with an integrated sinter filter made of inox wire mesh. The pipeline regulator has been submitted to an ignition test for oxygen with a supply pressure of 100 bar in accordance to EN ISO 10524-2. CE marking according to Guideline for Medical Products 93/42/EEC.
