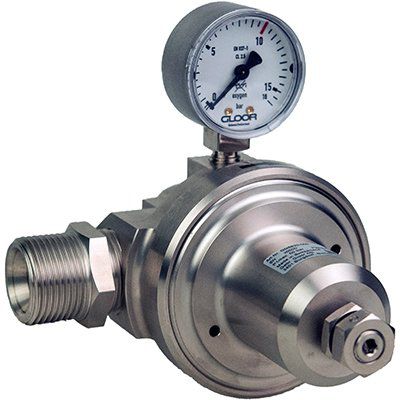

Air pressure regulator PM0131E
O2N2ON2

air pressure regulator
air pressure regulator
Add to favorites
Compare this product


Characteristics

Fluid type
O2, air, N2O, helium, N2
Applications
medical, laboratory
Number of stages
single-stage
Connection type
integrated
Features
low-pressure, high-flow
Flow

280 m³/h, 300 m³/h, 500 m³/h, 640 m³/h
(9,888.11 ft³/h, 10,594.4 ft³/h, 17,657.33 ft³/h, 22,601.39 ft³/h)

Inlet pressure

50 bar
(725.2 psi)

Output pressure

Max.: 10 bar
(145 psi)

Min.: 0 bar
(0 psi)

Height

148 mm
(5.8 in)

Weight

3.3 kg
(7.3 lb)

Width

136 mm
(5.4 in)

Depth

153 mm
(6 in)

Description

for installation in flow direction from the right or from the left the application is mainly intended for central gas supply systems in hospitals and clinics The field of application of the medical pipeline regulator maxi is mainly found in the area of central gas supply systems for medical gases. The pipeline regulator maxi is used either as a supply regulator in a cold vaporizer (liquiefied gas tank) line or as a second pressure stage in medical gas supply systems with gas cylinders or racks. The adjustment of the pressure is effected with the help of a tool. Once adjusted, the pressure is secured by means of a counter nut to prevent any unintended or unauthorised adjustment of the pressure. The pipeline regulator maxi is equipped with a working pressure gauge and in the inlet with an integrated filter made of inox wire mesh. The pipeline regulator maxi has been submitted to an ignition test for oxygen with a supply pressure of 100 bar in accordance to EN ISO 10524-2. CE marking according to Guideline for Medical Products 93/42/EEC.
