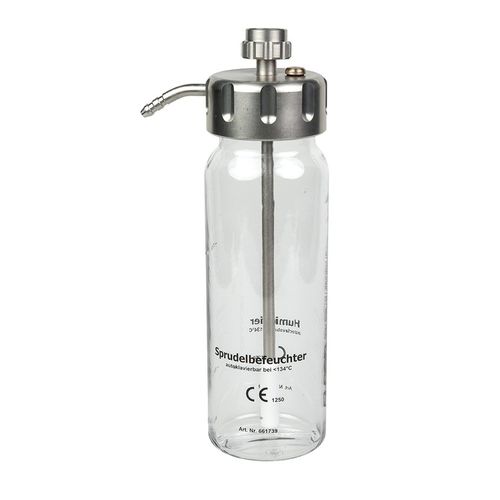

Bubble humidifier PM0133E

respiratory

The function of the humidifier is to moistening mainly oxygen or air with medicine or sterile water. High quality finish, cover in brass, nickel pated, with integrated overpressure valve. Total volume of recipient 400 ml / capacity 250 ml. Maximum gas flow 32 l/min. The humidifier is autoclavable up to max. 134°C. Intended for use in clinics and hospitals. The humidifier is certified in accordance with EN ISO 8185. CE marking according to the Guideline for Medical Products 93/42/EEC. Technical data: Classification unit class to EU guideline 93/42 EEC Annex IX, class IIa Supply pressure atmospheric pressure on the outlet of the connected upstream device Filling capacity 250 ml Gas O2, Air Inlet G 1/4“, G 3/8“, G 1/2“, 9/16 UNF (other threads on request) Outlet hose nipple 5 mm Material cover brass, external parts nickel plated; bottle polycarbonate, filter PE Sealing material EPDM Operating temperature -20 to +60°C, autoclavable up to max. 134°C Overpressure valve responds to an overpressure of 1 bar Dimensions height : 210 mm, width : 94 mm, diameter of recipient : 60 mm Total capacity 400ml Weight 350 gr
