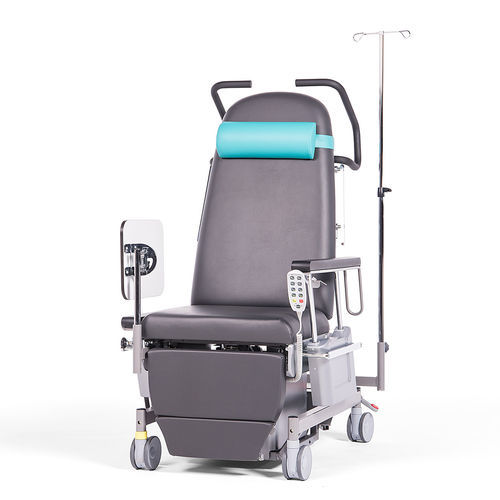

Electric treatment chair Multiline Next AC

4-sectionTrendelenburgergonomic

Overview
This patient positioning and transport couch is designed for outpatient surgery workflows including surgical preparation, transfer to/from the operating theatre, postoperative positioning and recovery. It combines ergonomic design, mobility and easy disinfection to suit constrained spaces where conventional beds do not fit.

Equipment

• Areas of application: surgical preparation, post-operative recovery, examination, treatment, mobilisation and transport
• Electric motor adjustment of backrest, seat and leg section as well as height (height range 58–90 cm)
• Emergency foot switch for Trendelenburg position to keep staff hands free
• Clean-surface design with limited seams to facilitate disinfection and compliance with hygiene requirements
• 12.5 cm castors with central braking system for safe manoeuvring
• Independently certified product safety and high reliability

Accessories

• Battery with charging station
• Standard bars and infusion bar
• Push handle
• LED reading lamp
• Infusion bar holder
• Oxygen bottle holder

Technical Data
Length chair position (floor space): 107 cm
Length lying position: 200 cm
Width: 77 cm
Length lying surface: 200 cm
Width lying surface: 60 cm
Padding thickness lying surface: 9 cm
Length armrest: 73 cm
Width armrests: 7 cm
Entrance height: 58 cm
Height adjustment: 32 cm (58–90 cm)
Diameter of castors: 12.5 cm
Backrest inclination: -5° to 78°
Seat part inclination: 0 to 22°
Footrest inclination: 0 to 90°
Voltage: 100–240 V / 50–60 Hz
Weight of couch: 128 kg
Max. patient weight: 220 kg

Description
The MULTILINE NEXT AC provides electromotive adjustment of back, seat and leg sections and a height stroke up to 90 cm to support outpatient surgical scenarios. Ergonomics, stability and mobility assist safe patient handling and staff ergonomics. A powerful battery enables extended cordless operation while motorised, stepless adjustment via the GREINER control element allows intuitive positioning (seated, relax, flat bed, emergency Trendelenburg). Two fully retractable armrests permit one-handed operation for transfer and clear access during repositioning.

Technical specifications

• Length chair position (floor space): 107 cm
• Length lying position: 200 cm
• Width: 77 cm
• Length lying surface: 200 cm
• Width lying surface: 60 cm
• Padding thickness lying surface: 9 cm
• Length armrest: 73 cm
• Width armrests: 7 cm
• Entrance height: 58 cm
• Height adjustment: 32 cm (58–90 cm)
• Diameter of castors: 12.5 cm
• Backrest inclination: -5° to 78°
• Seat part inclination: 0 to 22°
• Footrest inclination: 0 to 90°
• Voltage: 100–240 V / 50–60 Hz
• Weight of couch: 128 kg
• Max. patient weight: 220 kg
