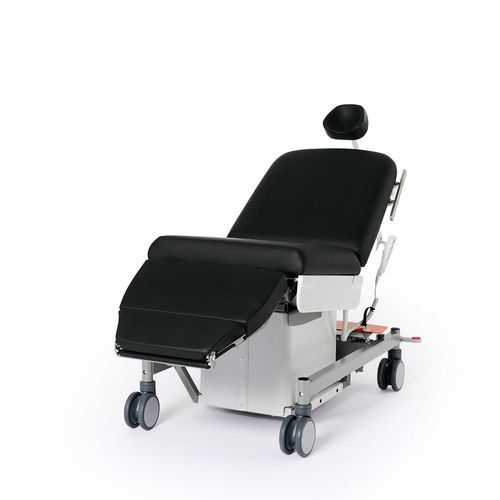

ENT operating table MULTILINE NEXT AC+

ophthalmicdermatologyelectric

Overview
The MULTILINE NEXT AC+ Mobile Operating Table is designed for ambulatory surgery and is used for positioning and installation of patients during minimally invasive surgical procedures. It serves as a mobile bed for surgical preparation, a recovery/awakening bed post-surgery, and for safe patient transport. The AC+ variant features a short backrest, stable patient positioning, standardized rails all around, and quickly interchangeable headrests, providing optimal access to the patient and high versatility due to its mobility and compact design.

Equipment

• Mobile operating table with a short backrest, providing stable and comfortable patient positioning
• Suitable for minimally invasive procedures in plastic and dermatological surgery, maxillofacial, ENT, ophthalmology and other specialties
• Direct access to the patient enables very precise interventions
• Equipped with 4 motors, horizontal stainless steel standard rail, Ergo headrest with Vario double-joint, central locking of the double castors
• Electric motor adjustment for backrest, seat, leg section and height; foot switch for Trendelenburg position; high-performance battery

New Vario Double Joint
The flexible Vario headrests feature a new intuitively operable head section. A quick-lock system allows tool-free attachment and detachment within seconds; new integrated levers improve handling. This enables the surgical team to adjust the patient’s position more quickly. Additional headrests are available as accessories. Option changeable headrests: Stretch, full cap, half cap.

Accessories (examples)

• Battery with charging station
• Infusion bar
• Holder for infusion bar
• Standard rail on the side of the seat and backrest
• Arm / Hand Surgery Table
• Electrically conductive upholstery material: ELECTRA
• GÖPEL holder

Technical specifications

• Length in chair position (floor space): 160 x 78 cm
• Length in lying position: 202 x 78 cm
• Width: 79 cm
• Length of lying surface: 193 x 60 cm (including headrest)
• Padding thickness of lying surface: 9 cm
• Entrance height: 58 cm
• Height adjustment: 32 cm (58-90 cm)
• Diameter of castors: 12.5 cm (1x directional)
• Backrest inclination: -5° to 78°
• Seat part inclination: 0° to 22°
• Footrest inclination: 0° to 30°
• Max. patient weight: 220 kg
• Voltage: 100-240 V / 50-60 Hz
• Weight (table): 128 kg
