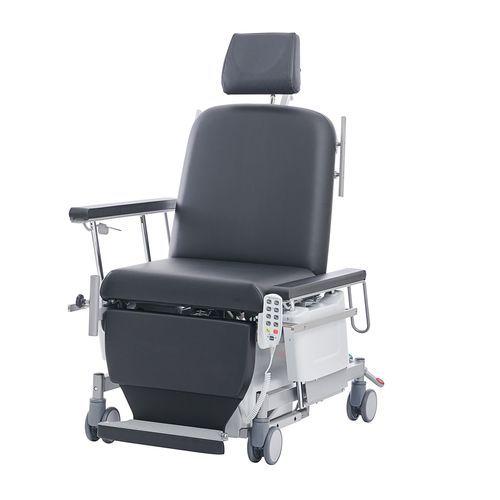

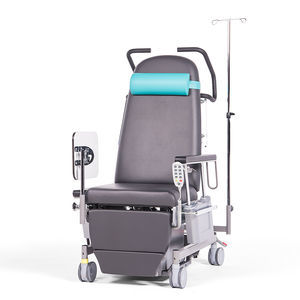

Electric treatment chair Multiline Next AC+

4 sectionsrecliningTrendelenburg

Overview
The Multiline Next AC+ is a mobile surgical chair designed for patient positioning and mobilisation in outpatient and minor-procedure settings. It is intended for preparation, intra-procedural positioning, transfer to/from operating rooms and post-anaesthesia recovery. The chair combines compact dimensions, manoeuvrability and adjustable sections to facilitate access for surgical teams while ensuring efficient cleaning and hygiene.

Equipment

• Short-back mobile surgery chair with reinforced rear section for stable patient positioning
• Suitable for minimally invasive procedures in plastic and dermatological surgery, maxillofacial surgery, ENT, ophthalmology and other specialties
• Newly developed GREINER headrest system: Ergo headrest with Vario double joint for one-hand adjustment and Quick assist quick coupling for interchangeable headrests and cushions
• Equipped with 4 motors, stainless steel upper support bar, Ergo headrest with Vario double joint and central locking for double swivel castors
• Electromechanical adjustment of back, seat and leg sections plus height lift; emergency footswitch for Trendelenburg position

Completely newly developed GREINER headrest system
Intelligent, quickly exchangeable headrests. Ergo headrest with Vario double joint enables one-hand positioning during procedures. Quick assist coupling allows rapid exchange of individual stretch, full and half-calotte cushions; all cushions are compatible with the Quick assist system.

Optional
Replaceable upholstery options: stretch covers, full and half spherical (calotte) cushions.

Technical specifications

• Chair length (floor space): 107 cm
• Length in lying position: 200 cm
• Width: 77 cm
• Lying surface length: 200 cm
• Lying surface width: 60 cm
• Padding thickness (lying surface): 9 cm
• Armrest length: 73 cm
• Armrest width: 7 cm
• Entrance height: 58 cm
• Height adjustment: 32 cm (58–90 cm)
• Castor diameter: 12.5 cm
• Backrest inclination: -5° to 78°
• Seat section inclination: 0 to 22°
• Footrest inclination: 0 to 90°
• Voltage: 100–240 V / 50–60 Hz
• Weight of chair: 128 kg
• Maximum patient weight: 220 kg
