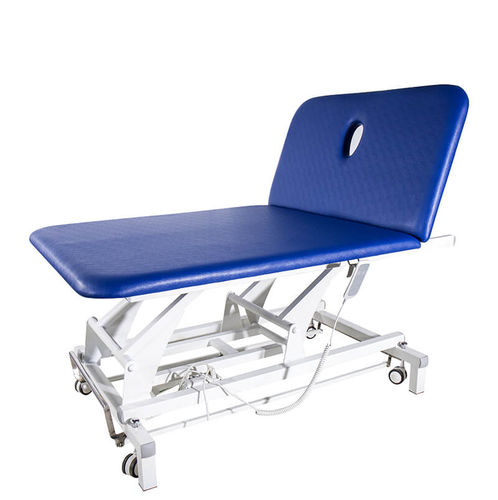

Bariatric examination table DP-8281

electricheight-adjustablewith adjustable backrest

Product Name
DP-8281 Electric Bariatric Treatment Bed

Summary
Size: 2000×1200×480 mm
Adjustable height: 480–920 mm
Backrest adjustment range: 0°–70° (head adjustment to 70°)
Controller: Hand controller standard; foot control available as option
Control material: Stainless steel foot control
Gas rod: 2 gas springs at the rear

Product Parameter
Dimensions (cm): 200×120×48/92
Carton size (cm): 202×122×52
N.W.: 101 kg
G.W.: 106 kg
Overall lifting height: 48–92 cm (single motor)
Backrest tilt: 0°–70° (double gas spring structure)
Max load: 220 kg

Product function description

• Injection-molded handle for adjusting the backrest angle.
• Detachable cushion: durable and easy to clean.
• Hand controller for height adjustment; optional foot-control (stainless steel) available.
• Foot bar with wheels for table movement; foot-operated wheel lowering mechanism.
• Adjustable foot pads to stabilize the bed on uneven floors.

Application / Features
The DP-8281 Bobath table features a 2-section extra-wide support surface and an adjustable backrest, designed for treating patients with reduced mobility, cerebral palsy or metabolic disorders. Accessories include a stainless steel pedal for movement, adjustable rubber feet, bolsters and face cushions. The treatment area is 2000 mm × 1200 mm and the minimum height of 480 mm facilitates access for wheelchair users. Electric height adjustment (with optional stainless steel foot control) helps reduce caregiver back strain during treatment.

Technical specifications

• Model: DP-8281
• Overall dimensions (mm): 2000 × 1200 × 480 (minimum height)
• Height adjustment range: 480–920 mm (48–92 cm)
• Backrest adjustment: 0°–70° (double gas spring)
• Head adjustment: 70°
• Controller: Hand controller standard; foot control optional
• Control material: Stainless steel foot control
• Gas rod: 2 gas springs at the rear
• Maximum load capacity: 220 kg
• Net weight: 101 kg
• Gross weight: 106 kg
• Carton size: 202 × 122 × 52 cm
• Sections: 2-section extra-wide support surface
• Accessories included/available: stainless pedal for movement, adjustable rubber feet, bolsters, face cushions, detachable cushion
