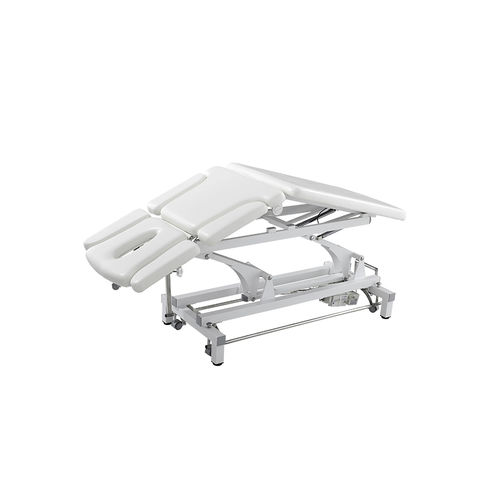

Rehabilitation examination table DP-S805

minor surgeryphysiotherapybeauty care

Overview
Dongpin S series electric treatment/examination table model DP-S805 designed for clinical physiotherapy and medical treatment environments. Dual-motor drive enables independent height adjustment and cushion lifting for ergonomic positioning of patients and ease of use by clinicians.

Suitable for

• Physiotherapy and rehabilitation clinics
• Aesthetic and slimming centers
• Micro-plastic surgery departments and outpatient treatment rooms

Standard parameters / Key features

• Stable linkage transmission mechanism for reliable adjustment movements.
• Medical-grade motors providing strong drive and low-noise operation.
• Robot-welded steel chassis to improve structural accuracy and stability.
• Five interchangeable multifunctional mattress panel options to support different therapy and massage procedures.
• Two motors: one for overall height adjustment and one for cushion/back lifting.
• Foot control and manual operation; height adjustable between 53 cm and 97 cm.
• Cushion lift for lumbar/back support with 30° lift angle.
• Adjustable backrest with dual mast support; angle adjustable from 10° to 85°.
• Manual leg section adjustment up to 80°.
• Load capacity: 150 kg; medical-grade ABS castors; durable construction.

Standard options

• Electric hand control
• Foot control + side control
• Optional towel bar
• Multiple upholstery color options

Dimensions
Overall length: 197 cm
Head section: 45 cm
Middle section: 51 cm
Leg section: 97 cm
Internal width: 69 cm
Adjustable height: 53 cm – 97 cm
Foam thickness: 5 cm
Foam density: 36 g/m2
Open size: 197 x 69 x (53–97) cm

Packing & Weight
Packing: 200 x 70 x 58 cm (heavy-duty cardboard)
Net weight / Gross weight: 83 / 93 kg

Technical specifications

• Model: DP-S805
• Series: Dongpin S series (electric physiotherapy bed)
• Drive: Two electric motors (overall lifting and cushion lifting)
• Height adjustment range: 53–97 cm (foot control and manual)
• Backrest angle: 10°–85° (double mast support)
• Cushion lift angle: 30° (lumbar/back support)
• Leg section adjustment: up to 80° (manual)
• Load capacity: 150 kg
• Foam: 5 cm thickness, 36 g/m2 density
• Chassis: robot-welded steel
• Castors: medical-grade ABS castors
