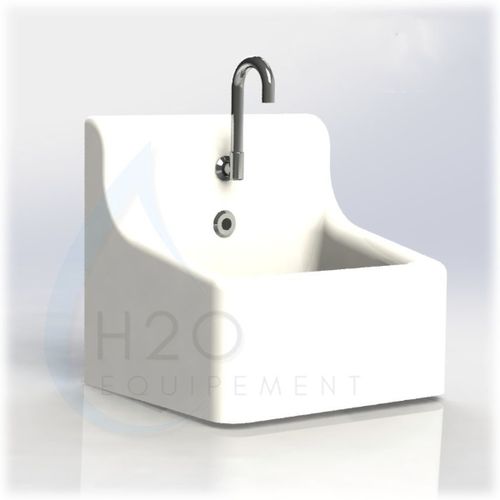

1-station handwashing system MINI HAND ONE

compactwall-mountedmedical

Overview
The MINI HAND ONE medical hand wash basin is a compact, wall-mounted sink engineered for strict hygiene in clinical environments. Molded as a single reinforced polyester block and finished with an antibacterial sanitary gelcoat, it prevents joints and glue lines that can harbour bacteria. Its reduced height and small integrated backsplash allow installation under glass panels or windows, making it suitable for medical consulting rooms, outpatient clinics and hospital areas.

Material & Finish

• Single-block molding in reinforced polyester.
• Antibacterial sanitary gelcoat finish to limit bacterial adhesion.
• No joints or glue to avoid bacterial niches and facilitate cleaning.

Electronic infrared sensor

• Hands-free activation via photocell for contactless water flow.
• Electronic unit powered by 220V mains or by battery to ensure operation in varied conditions.
• Compact, easy-to-install solution for hygienic handwashing in medical settings.
• Advantages:
  • Touchless electronic control (mains or battery)
  • Entire unit molded in a single block — no joints or glue
  • No bacterial niches
  • Medium backsplash and side panels to protect wall and floor from splashes
  • Design prevents water stagnation and placement of objects on the unit
  • Wall-mounted tap reduces bacterial buildup
  • Timed flow regulation for water savings
  • Automatic flushing to avoid stagnation
  • All settings adjustable via front remote control

Knee-operated control (hands-free)
The knee-operated control enables hands-free activation by pressing with the knee. It is a compact, hygienic solution where hands must remain sterile. The timed control provides water savings while maintaining the same hygienic design principles: single-block molding, no bacterial niches, backsplash and side panels, and prevention of water stagnation.

Elbow control
Elbow activation allows water flow without hand contact by applying pressure with the elbow. Suitable for procedures requiring sterile hands. Can be used with an upstream mixer or with integrated mixing at the tap. Hygiene features match other control modes: single-block molding, absence of joints, protective backsplash and side panels, no water stagnation and wall-mounted tap.

Foot control
Foot-operated activation provides a discreet hands-free option by light pressure of the foot. Timed operation conserves water while preserving hygienic characteristics: single-block molding, no bacterial niches, backsplash and side protection, no water stagnation and wall-mounted tap.

Installation & Use
Designed for easy installation in constrained spaces. The optimized height and integrated small backsplash enable installation under a glass panel or window. Multiple hands-free activation options (infrared electronic, knee, elbow, foot) allow specification of the most appropriate control for each clinical area. The design prevents objects from being placed on the unit, reducing contamination risks.

Technical specifications

• Model: MINI HAND ONE
• Material: Reinforced polyester, single-block molding
• Finish: Antibacterial sanitary gelcoat
• Dimensions (L × W × D): 500 × 470 × 423 mm
• Weight: 9 kg
• Mounting: Wall-mounted
• Control options: Electronic infrared (photocell), knee-operated, elbow-operated, foot-operated
• Power for electronic version: 220V mains or battery
• Hygiene features: No joints/glue, no bacterial niches, medium backsplash and side panels, no water stagnation, wall-mounted tap to prevent bacterial buildup
• Water management: Timed flow regulation for water savings, automatic flushing to prevent stagnation
• Adjustments: All settings adjustable via front remote control
• Applications: Medical offices, outpatient procedures, hospitals; intended for doctors, nurses, dentists, healthcare professionals and veterinarians
• Installation note: Suitable for installations with a glass panel or window above due to optimized height and small integrated backsplash
