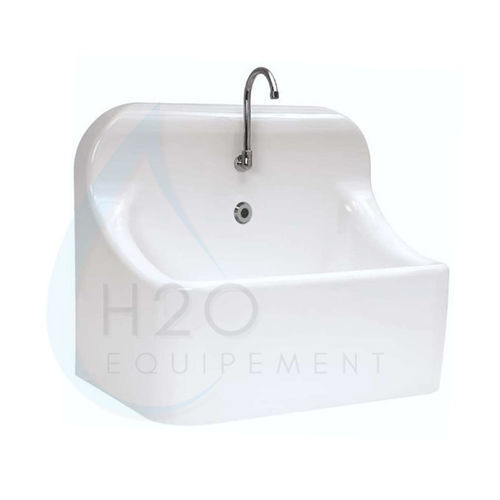

1-bay surgical sink SURG 1

polyesterelectronically-operatedwith aseptic coating

Overview
The SURG 1 is a single-station surgical trough designed for full washing of hands and forearms up to the elbows. Constructed in reinforced polyester with an antibacterial sanitary gelcoat, the monobloc molded trough has no joints or glue to minimize bacterial retention and support hygiene in operating rooms and other high-risk sterile areas.

Intended use
Designed for surgeons, operating room nurses, anesthetists, dentists and other professionals requiring aseptic surgical hand and forearm washing in critical areas.

Key advantages

• Hands-free activation options to preserve sterility and reduce contamination risk.
• Timed water flow to control consumption.
• Programmable automatic purge/flush to prevent water stagnation and bacterial growth.
• Accessible settings (front infrared remote for electronic version) without disassembly.
• Monobloc molded trough without joints or glue to eliminate bacterial niches.
• Wall-mounted tap to reduce contact zones and simplify cleaning.
• Hygienic design: no internal surfaces for placing objects; integrated backsplash and side panels limit splashes.

Available activation / control options

• Infrared electronic control — hands-free activation; mains and battery power; timed flow and programmable flushing; front infrared remote for settings.
• Femoral (knee) control — timed knee activation for hands-free use and water savings.
• Elbow control — ergonomic elbow activation for aseptic washing.
• Foot (pedal) control — timed foot-pedal activation for hands-free operation with controlled water consumption.

Features and benefits

• One-piece monobloc trough eliminating bacterial retention areas.
• Single-station format suitable for operating rooms and pre-surgical areas.
• Wide, deep basin specifically sized for elbow-length washing.
• Multiple hands-free control modes to maintain the sterility chain during activation.
• Flow time delay to ensure water savings and controlled use.
• Wall-mounted tap positioned to minimize contact and simplify maintenance.
• Integrated backsplash and side panels protect walls and floors from splashes.

Dimensions
Length × Width × Depth
900 × 725 × 520 mm

Weight
15 kg

Technical specifications

• Model name: SURG 1
• Construction: Reinforced polyester monobloc molded trough
• Surface finish: Antibacterial sanitary gelcoat
• Stations: Single-station (1 station)
• Control options: Infrared electronic sensor (mains & battery), femoral (knee), elbow, foot (pedal)
• Timed water flow: Yes (programmable)
• Automatic purge/flush system: Programmable to prevent stagnation
• Tap mounting: Wall-mounted
• Hygiene features: No joints/glue, no surfaces for placing objects inside trough, integrated backsplash and side panels
• Intended washing: Hands and forearms up to the elbows (surgical scrub)
• Dimensions (L×W×D): 900 × 725 × 520 mm
• Weight: 15 kg
• Typical installation areas: Operating rooms, sterile units, high-risk infectious areas
