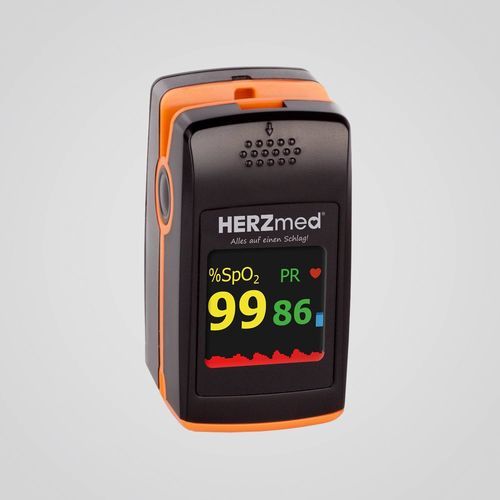

Fingertip pulse oximeter PC-60E

medicalhome carebattery-powered

Product overview
The HERZmed Finger Pulse Oximeter PC-60E is designed for versatile SpO2 and pulse monitoring. External sensor connection allows use across patient groups (adults, children, infants).

At a glance

• For continuous and spot patient monitoring
• Display: pulse rate (PR), current oxygen saturation (SpO2), plethysmographic waveform
• Alarm limits:
  • SpO2 lower limit: 90%
  • HR upper limit: 120 bpm
  • HR lower limit: 50 bpm
• Clear, high-contrast color display
• Automatic power on/off
• Visual and audible alarm indications
• Dimensions: approx. 66 x 36 x 33 mm
• Weight: approx. 60 g
• Housing color: Black / Orange

Product description
The HERZmed PC-60E finger pulse oximeter supports external SpO2 sensors, making it suitable for adults, children and infants. It features a large, clear color display optimized for low-light environments and automatic alarm functions. Deviations from preset norms trigger visual (blinking display) and audible (beep) alarms. The device is adapted for professional environments including clinics, medical practices and emergency services.

Key features

• Sharp color display with plethysmographic waveform
• Automatic power on/off (approx. 8 seconds)
• Auto-rotating display with four viewing orientations
• Visual and audible alarms (preset limits, non-adjustable)
• Comfortable fit with soft sensor material
• Operating time up to 30 hours with 2x AAA batteries

Preset alarm limits

• SpO2 lower limit: 90%
• HR upper limit: 120 bpm
• HR lower limit: 50 bpm

Technical details

• Dimensions: approx. 66 x 36 x 33 mm (L x W x H)
• Weight: approx. 60 g (including batteries)
• Color: black-orange housing with color display
• Standards: IEC 60601-1, ISO 9919

Delivery contents

• 1 x Pulsoximeter PC-60E
• 1 x selectable SpO2 sensor for children (promotional package)
• 2 x AAA standard batteries
• 1 x clip strap for fixation
• User manual
• 24 months warranty

Usage note
Insert the finger straight into the device for an accurate measurement. For users with gel/artificial nails, insert the finger sideways (90°) to avoid nail damage and ensure correct measurement.

Model (table)
Product number | Product name | Color
901700 | HERZmed Finger Pulse Oximeter PC-60E | black / orange

Characteristics / Technical specifications

• Model: PC-60E
• Suitable for: adults, children, infants (external sensors supported)
• Display: color display with plethysmography waveform
• Alarms: visual and audible, preset alarm limits
• Battery: 2x AAA, up to approx. 30 hours operating time
• Automatic functions: auto power on/off (approx. 8 s), auto-rotating display views
• Dimensions: approx. 66 x 36 x 33 mm
• Weight: approx. 60 g (including batteries)
• Housing color: Black/Orange
• Standards: IEC 60601-1, ISO 9919
• Delivery contents: oximeter, selectable SpO2 sensor (children) in promotional package, 2x AAA batteries, clip strap, user manual
• Warranty: 24 months
