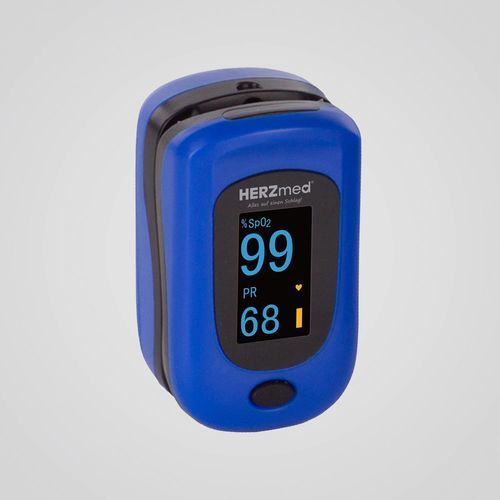

Compact pulse oximeter PC-60B Strong

fingertipmedicalhome care

Product overview

• For precise patient monitoring
• Display: pulse rate (PR), perfusion index (PI), current oxygen saturation (SpO2), pulse wave display
• Alarm limits: SpO2 lower limit: 90 %; HR upper limit: 120 bpm; HR lower limit: 50 bpm
• Sharp, high-contrast display
• Automatic on/off function
• Splash-protected, robust housing
• Dimensions: approx. 62 x 33 x 32 mm
• Weight: approx. 60 g
• Housing color: blue

Product description
The innovative PC-60B STRONG finger pulse oximeter from HERZmed delivers stable operation and long service life. Integrated measurement of perfusion index (PI), pulse rate (PR) and oxygen saturation (SpO2) plus pulse wave display (plethysmogram) to support detection of arterial and venous perfusion disorders. Standard equipment includes a highly legible two-color display with blue backlight. Suitable for professional clinical use, emergency services, fire brigades and other field operations.

Features

• Displays pulse rate (PR), perfusion index (PI) and current oxygen saturation (SpO2)
• Pulse wave display for diagnosing perfusion disorders (plethysmogram)
• Clear display of pulse rate and oxygen saturation
• Automatic on/off (approx. 8 seconds)
• Splash-protected, robust housing
• Comfortable fit thanks to soft sensor material
• Operating time up to 30 hours with 2 x AAA batteries

Technical details

• Dimensions: approx. 62 x 33 x 32 mm (L x W x H)
• Weight: approx. 60 g (including batteries)
• Color: blue housing with two-color display
• Standards: IEC 60601-1, ISO 9919

Scope of delivery

• PC-60B STRONG pulse oximeter
• 2 x AAA standard batteries
• Fabric pouch for safe storage
• Clip strap for attachment
• User manual
• 24 months warranty

Fixed alarm limits (adult mode)

• SpO2 lower limit: 90 %
• HR upper limit: 120 bpm
• HR lower limit: 50 bpm

Application note
Insert the finger straight into the device for accurate measurement. For gel or artificial nails, place the finger sideways (90°) to avoid nail damage and ensure accurate readings.

Model
Product number | Product name | Color
901500 | HERZmed Finger pulse oximeter PC-60B Strong | Blue

Characteristics / Technical specifications

• Measured values: SpO2 (oxygen saturation), pulse rate (PR), perfusion index (PI)
• Pulse wave display (plethysmogram) for detection of perfusion disorders
• Display: two-color display with blue backlight
• Automatic on/off (approx. 8 seconds)
• Splash-protected, robust housing; comfortable sensor material
• Operating time: up to 30 hours with 2 x AAA batteries
• Dimensions: approx. 62 x 33 x 32 mm
• Weight: approx. 60 g (including batteries)
• Compliance: IEC 60601-1, ISO 9919
