Compact pulse oximeter FS20P

fingertipmedicalhome care

Product description

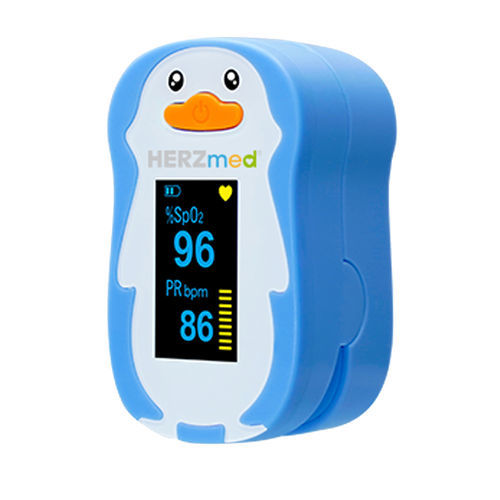

The HERZmed finger pulse oximeter FS20P is designed for pediatric applications. It features a high-contrast OLED display with large digits for easy reading. The device displays pulse rate with a pulse-bar graphic and SpO2 values. Its compact, lightweight design is suitable for small fingers (measuring from 7 mm). The child-friendly penguin shape improves acceptance and compliance in young patients.

Overview

• Suitable for children approximately 2–11 years old
• Displays SpO2 and pulse rate
• OLED display with large digits and pulse-bar graphic
• Compact and portable — measures from 7 mm finger width
• Battery status indicator and pulse-bar visualization
• Power-saving mode with automatic shut-off

Technical details (short)

• 4 display modes available
• Dimensions: 58 x 36 x 33 mm
• SpO2 measurement range: 70–99% (display resolution 1%)
• Pulse measurement range: 25–250 bpm (display resolution 1 bpm)

Scope of delivery

• Attachment cord / clip strap
• User manual
• 2 × AAA alkaline batteries

Usage note
Place the finger straight into the device to ensure an accurate measurement.

Model information (table)
Product number | Product name | Color
900204 | HERZmed Finger pulse oximeter FS20P | light blue

Questions and answers (excerpt)

• Operating time with batteries: With two standard AAA batteries, the device can operate up to 30 hours.

Technical specifications

• Model: FS20P
• Brand: HERZmed
• Intended for: Children approx. 2–11 years
• Display: OLED display, large digits
• Display modes: 4
• SpO2 range: 70–99% (resolution 1%)
• Pulse range: 25–250 bpm (resolution 1 bpm)
• Detectable finger width: from 7 mm
• Dimensions (HxWxD): approx. 58 x 36 x 33 mm
• Weight: approx. 60 g (including batteries)
• Housing / color: white housing with light blue product color (product no. 900204)
• Power supply: 2 × AAA alkaline batteries (included)
• Battery life: up to 30 hours (with 2 × AAA standard batteries)
• Functions: pulse-bar graphic, battery status indicator, power-saving mode / automatic shut-off
• Scope of delivery: clip strap / attachment cord, user manual, 2 × AAA batteries
