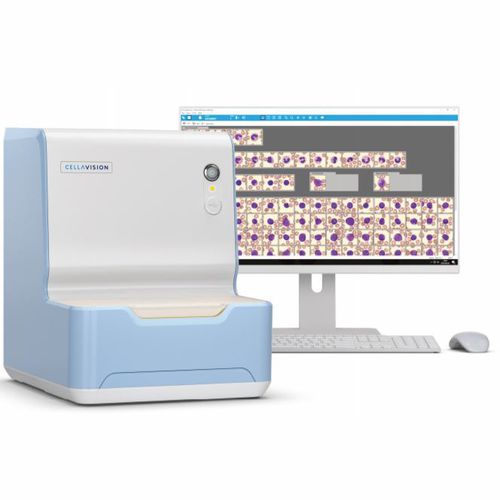

Clinical diagnostic cell morphology analyzer CellaVision DC-1

bloodautomaticautomated

Overview
The CellaVision DC-1 is a digital cell morphology system for automating blood cell differentials in low-volume hematology laboratories. The system uses high-speed robotics and digital imaging to locate and capture high-quality cell images. It supports stand-alone and networked installation and enables local and remote review of blood smears.

Key features

• Automatic capture of digital images from blood smears
• Loading capacity: 1 slide
• Throughput: up to 10 slides per hour for a complete differential (may vary*)
• Creates digital scans of predefined specimen areas for review and archiving

Specifications
SLIDE HANDLING

• Accepts slides with ground edges, clipped, round or square corners
• Order ID entered manually or via optional barcode reader
• Slides loaded one at a time
• Designed to analyze slides with blood smears

IMMERSION OIL
Manual oil dispensing

QUALITY CONTROL

• Cell location accuracy test for verification of hardware and stain quality
• Built-in smear check

ARCHIVING OF RESULTS AND IMAGES
Uses LAN for archiving results and images

STORAGE CAPACITY

• Primary storage: local hard drive up to 1,500 slides (20 GB)
• Secondary storage: unlimited when transferred to external storage media

PRINTER SUPPORT
Laser and inkjet printers supported via Windows

COMMUNICATIONS

• Bi-directional LIS support (ASTM)
• Ethernet 10/100 Mbps
• Multiple CellaVision DM/DC analyzers can share a database

SYSTEM COMPONENTS

• Slide Scanning Unit with integrated PC running Windows 10 Embedded
• CellaVision DM software

ELECTRICAL SPECIFICATIONS

• Analyzer: voltage input 12 VDC; current input 7 ADC
• Power supply: input 100–240 V, 50–60 Hz; current input 1.2–0.6 A

SIZE (Width x Depth x Height)
280 x 390 x 370 mm (11.0 x 15.4 x 14.6 inches)

WEIGHT
11 kg / 24 lbs

THROUGHPUT*
Up to 10 slides/h for a complete differential (100 WBC + RBC + PLT) — processing time may vary depending on smear quality, WBC concentration and number of non-WBCs

SLIDE PREPARATION METHODS (WEDGED)

• Automated slide makers and stainers
• CellaVision SmearMaker
• HemaPrep / MiniPrep automated blood smearing devices
• Manual smears

STAINS
Romanowsky stains (May Grünwald-Giemsa, Wright-Giemsa, Wright)

OPTIONAL SOFTWARE / APPLICATIONS

• CellaVision Remote Review Software
• CellaVision Server Software
• CellaVision Proficiency Software
• CellaVision Dashboard

Notes
*Processing time may vary depending on smear quality, WBC concentration and number of non-WBCs. **Not available in all markets.
