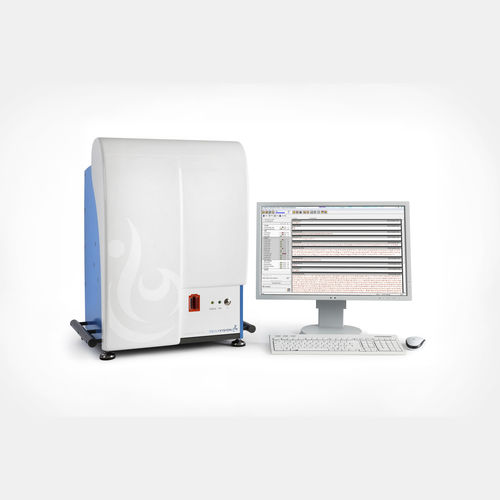

Clinical diagnostic cell morphology analyzer CellaVision® DM1200

bloodfor biological samplescell

Overview
The CellaVision DM1200 is a digital cell morphology system for automated imaging and pre-classification of blood and body fluid smears. Combining high-speed robotics and digital microscopy, the DM1200 acquires high-quality images of cells to support hematology workflows and laboratory diagnostic routines.

Intended use
Designed for hematology laboratories of varying sizes to streamline differential counts and digital review processes.

Key features

• Automated capture of digital images from peripheral blood smears and body fluid preparations
• Loading capacity: 12 slides
• Throughput: approximately 20 slides/h (typical, depending on mode and sample)
• Creates digital scans of predefined specimen areas for review and archiving

Operational notes
Processing time depends on smear quality, WBC concentration and presence of non-WBC elements. Specifications are subject to change. Availability may vary by market.

Slide handling

• Requires barcode-labeled slides with clipped or round corners
• Slides loaded in magazines with capacity for 12 slides
• Analyzes slides batched in dedicated magazines or mixed when interfaced with a LIS

Immersion oil

• Automatic oil dispensing
• Oil pack designed for easy replacement

Quality control

• Cell location accuracy test for verification of hardware and staining quality

Archiving of results and images
LAN connectivity supported for storage and transfer of images and results.

Storage capacity

• Primary storage: local hard drive up to approx. 4,000 slides (≈20 GB)
• Secondary storage: unlimited when transferred to external storage media

Printer support
Supports laser and inkjet printers via Windows.

Communications

• Bi-directional LIS support (ASTM)
• Ethernet 10/100 Mbps
• Multiple CellaVision DM analyzers can share a database
• E-mail functionality

System components

• Slide Scanning Unit
• CellaVision DM software
• System computer with Windows

Electrical specifications

• Voltage input: 100–240 VAC
• Current input: System computer 1.4–0.7 A; Slide scanning unit 0.6–0.3 A

Clearance
CE, 510(k).

Size & weight
576 × 450 × 710 mm (W × D × H). Weight: 80 kg / 176 lbs.

Throughput details

• Peripheral blood: up to 20 slides/h for a complete differential (100 WBC + RBC + PLT)
• Digital slides: up to 20 slides/h for 10 × 10 mm at 10×; up to 1.5 slides/h for 10 × 10 mm at 10× + 50×
• Body fluids (6 mm sample area): up to 15 slides/h for differential (100 WBCs at 10×); up to 3 slides/h for differential (100 WBCs at 10× + 50×)

Optional software / applications

• CellaVision Advanced RBC Application
• CellaVision Body Fluid Application
• CellaVision Remote Review Software
• CellaVision Server Software
• CellaVision Proficiency Software

Accessories

• CellaVision Immersion Oil Pack
• Barcode-labeled slide magazines
• QC barcode labels
• Light tower
• Label printer kit
