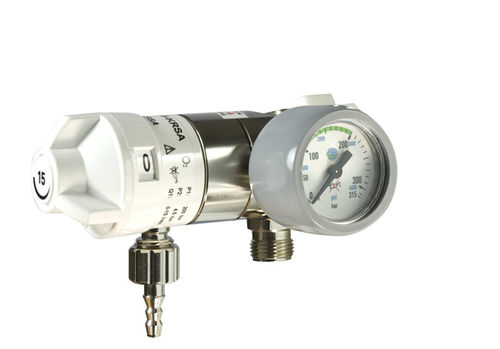

Oxygen pressure reducer AEROway® - Fast 15-KRSA G3/8"
for emergency bagsintegrated

oxygen pressure reducer
oxygen pressure reducer
oxygen pressure reducer
Add to favorites
Compare this product


Characteristics

Fluid type
oxygen
Applications
for emergency bags
Connection type
integrated
Flow

15 l/min
(3.96 us gal/min)

Inlet pressure

200 bar
(2,900.8 psi)

Output pressure

4.5 bar
(65.3 psi)

Description

AEROway® – Fast | Pressure Reducer (15 l/min) for emergency and transport cases Pressure reducer according to DIN EN ISO 10524-1, as a compact version for emergency and transport cases, bags and backpacks. Can be set directly to maximum flow from the starting position (flow = 0). With additional G 3/8" outlet (5.0 bar | 110 l/min) The Quality in Detail: - Gradually adjustable flow - High pressure hand connection G 3/4" for oxygen cylinders - Outlet UNF 9/16" with barbed hose adapter 4 - 6 mm - Inlet pressure 200 bar | Outlet pressure 4.5 bar - In frontal view, the adjusted and adjacent flows are visible - Robust body made of nickel-plated brass - Integrated safety valve and inlet filter - O² flow: 15 l/min - Flow increments: 0 - 1 - 2 - 3 - 4 - 5 - 6 - 9 - 12 - 15 l/min - Connection: right (Also available for left | HDM01-15-KLSA) REF: HDM01-15-KRSA
