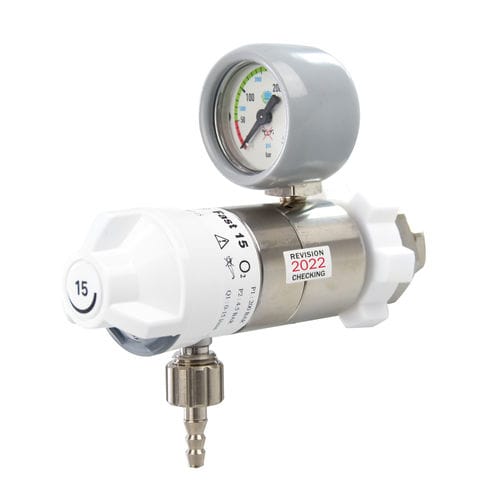

Oxygen pressure reducer AEROway® - Fast HDM01-1
integratedadjustable-flowhigh-pressure

oxygen pressure reducer
oxygen pressure reducer
Add to favorites
Compare this product


Characteristics

Fluid type
oxygen
Connection type
integrated
Features
adjustable-flow, high-pressure
Flow

Min.: 0 l/min
(0 us gal/min)

Max.: 1 l/min
(0.26 us gal/min)

Inlet pressure

200 bar
(2,900.8 psi)

Output pressure

4.5 bar
(65.3 psi)

Description

AEROway® – Fast | Pressure Reducer (1 l/min) The AEROway® – Fast Pressure reducer is, according to DIN EN ISO 10524-1, for portable oxygen devices and mobile oxygen standing devices. The Quality in Detail: - Gradually adjustable flow - High pressure hand connection G 3/4" (O2) | G 5/8" (AIR) - Outlet UNF 9/16" with barbed hose adapter 4 - 6 mm - Inlet pressure 200 bar | Outlet pressure 4.5 bar - O² flow available: 1 l/min - Flow increments: 0 - 0.1 - 0.2 - 0.3 - 0.4 - 0.5 - 0.6 - 0.7 - 0.8 - 1.0 l/min - In frontal view, the adjusted and adjacent flows are visible - Continuous flow also between 2 flow increments - Robust body made of nickel-plated brass - Integrated safety valve and inlet filter Also available in 5 l/min, 15 l/min, 25 l/min, 50 l/min. REF: HDM01-1
