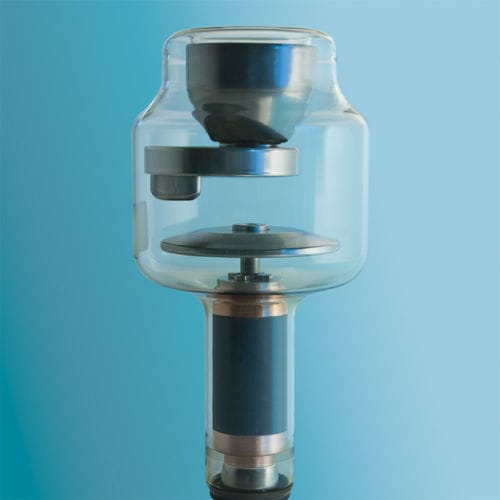

Rotating anode X-ray tube X50H standard radiography
Add to favorites
Compare this product
Characteristics
- Tube type
- rotating anode
- Applications
- standard radiography
- Nominal anode input voltage
Max.: 440 W
Min.: 0 W
- Nominal tube voltage
150 kV
Description
• Focal track in tungsten-rhenium alloy to prevent cracking
• High-thermal emittance oxide coating on anode and rotor provides high anode heat dissipation rate
• Severe tests during conditioning assure best performances
Specifications
Anode angle and diameter 16°- 90 mm
Anode heat storage capacity 105 kJ (140 kHU)
Rotating anode speed 3000 rpm
Catalogs
X50H
1 Pages
