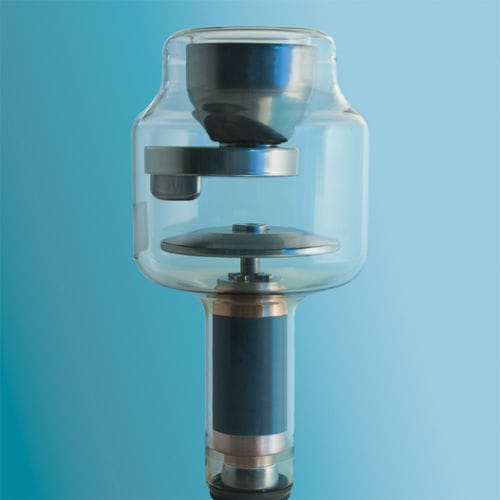

Rotating anode X-ray tube X50AH

rotating anode X-ray tube
rotating anode X-ray tube
Add to favorites
Compare this product


Characteristics

Tube type
rotating anode
Nominal anode input voltage

Min.: 0 W

Max.: 440 W

Description

Rotating anode X-ray tube for general radiographic, medium duty X-ray systems, with enhanced thermal capacity. • Improved anode thermal capacity • Focal spot combinations allows for either high resolution imaging capabilities (0.6/1.2) or high available power for short exposure time (1.2/2.0) • Severe tests during conditioning assure best performances • Available also special version for reloading in GE-CGR and SIEMENS housings (supplied with anode end adaptation piece) Specifications Maximum peak voltage - 150 kV Anode angle and diameter - 16°- 90 mm Anode heat storage capacity - 150 kJ (200 kHU) Rotating anode speed - 3000 rpm

Catalogs

X50AH
X50AH
1 Pages
