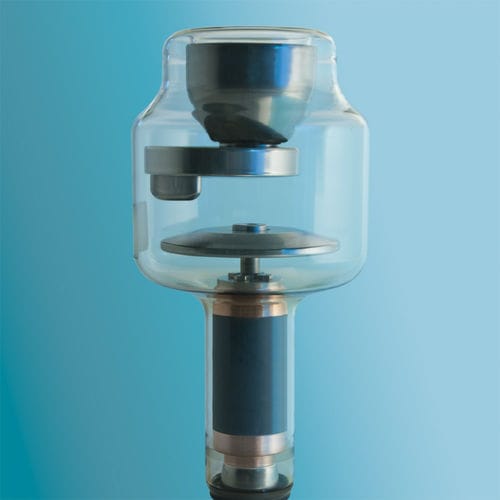

Rotating anode X-ray tube RTM92 series

standard radiographyfluoroscopy

• Bearing assembly and bearing lubricant system aredesigned for long life under hardest x-ray operating conditions • Focal track in tungsten-rhenium alloy to prevent cracking • High-thermal emittance oxide coating on anode and rotor provides high anode heat dissipation rate • Severe tests during conditioning assure best performances • Available also special versions for: – reloading in GE-CGR and SIEMENS housings (supplied with anode end adaptation piece) Specifications Anode angle and diameter 15°- 90 mm Anode heat storage capacity 225 kJ (300 kHU) Rotating anode speed 3000 – 10000 rpm
