High-capacity laboratory cyclotron Cyclone® 70

high-energyfor PET

Overview
The Cyclone® 70 is a high-energy, high-capacity cyclotron from IBA RadioPharma Solutions designed for routine production of medical radioisotopes. Thanks to a multi-targets layout and flexible accelerated current and energy, it supports large-scale production needs using high-energy protons and offers options across a wide range of energies and beam currents.

Key messages

• Multi-targets, high capacity system tailored for routine production using high-energy protons.
• Wide flexibility in accelerated current and energy, enabling production of multiple isotopes.
• Proven reliability with modular RF systems and optimized vacuum for low running costs and high uptime.

Applications / Isotopes

• PET Imaging
• Strontium-82 (82Sr)
• Germanium-68 (68Ge)
• Iodine-123 (123I)

Highlights & Features

• Multi-targets layout to fit routine production flows.
• Dual-beam extraction allowing 2 simultaneous extracted beams.
• Optimized vacuum, modular RF system and modular power supplies for efficiency and reliability.
• Proven track record: IBA expertise in installation and operation of multiple 70 MeV cyclotrons.

Product media

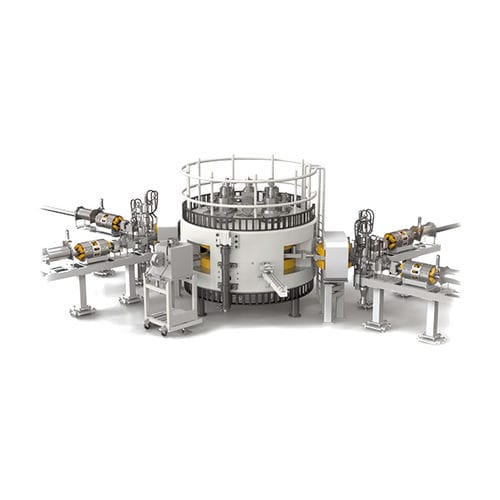

• Product imagery and visual materials (photo and video) are provided on the product page to illustrate the Cyclone® 70 unit, its installation and operational highlights.

Caractéristiques / spécifications techniques

• Energy range: 30 to 70 MeV
• Cyclotron dimensions: 4 x 3.8 m
• Target types: Multipurpose solid targets and gas targets
• Vault dimensions (recommended/illustrative): 12 x 10 m
• Exit ports / Extraction: 2 simultaneous extracted beams (dual-beam extraction)
• Production power / Beam current: up to 750 µA
• Beam lines: Up to 6 long beam lines
• Designed for high-capacity production of isotopes such as 82Sr, 68Ge and 123I
• Optimized vacuum and modular RF/power supply design for low operating costs and high availability
