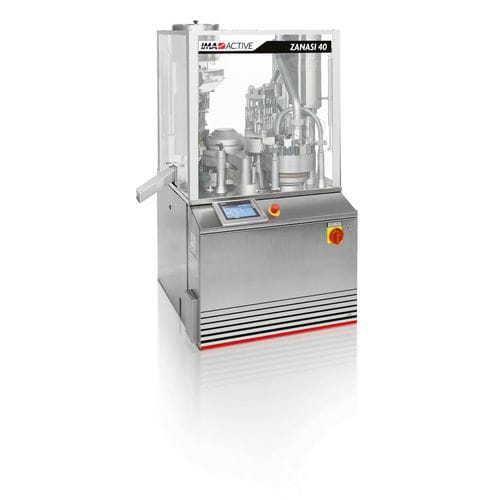

Automatic filling machine ZANASI series

tabletfor powdersfor liquids

Overview
Designed in the 1970s, ZANASI is IMA’s first automatic capsule filler that made history. Still appreciated for its simple configuration, it offers maximum versatility for combined dosing within the same capsule. ZANASI can dose powder, pellets, tablets, minitablets and liquids into hard gelatine capsules, depending on the configuration and installed dosing units. Its hallmark? Exceptional user-friendliness, trusted by operators worldwide.

Key highlights

• Accurate processing: Combined dosing of various products with excellent results in terms of dosing accuracy and speed.
• Accessibility: Easy access to the working area, simplifying routine operations such as cleaning, inspection and maintenance.
• Ergonomic interface: The machine is designed for easy operation, requiring minimal training.
• Efficiency at speed: Quick size changeover and fast cleaning for maximum productivity.

Production monitoring
All ZANASI machines are pre-arranged to be equipped with a statistical weight-checking unit for production monitoring. The group is prepared for 21 CFR part 11 compliance.

Technical data
ZANASI technical data
Model: ZANASI 6 | ZANASI 12 | ZANASI 25 | ZANASI 40
Maximum output (capsules/hour): 6,000 | 12,000 | 25,000 | 40,000
Number of capsules per cycle: 1 | 2 | 4 | 6
Capsule size: 000-5, supro A-E, DB, DBAA
Weight (kg): 1,000

Machine details (gallery & media)
Machine video trailer and photographic gallery available showing capsule orientation, presence control, powder dosing, working area, capsule exit and vacuum bowl.

Technical specifications

• Product types dosed: powder, pellets, tablets, minitablets, liquids (into hard gelatine capsules).
• Models available: ZANASI 6, ZANASI 12, ZANASI 25, ZANASI 40.
• Maximum outputs: up to 40,000 capsules/hour (ZANASI 40).
• Capsules per cycle: from 1 (ZANASI 6) up to 6 (ZANASI 40).
• Supported capsule sizes: 000-5, supro A-E, DB, DBAA.
• Machine weight (typical): 1,000 kg.
• Pre-arranged for statistical weight-checking unit for production monitoring.
• Prepared for 21 CFR part 11 compliance.
• Designed for easy cleaning, inspection and maintenance; ergonomic operator interface.
