Computer-controlled filling machine ADAPTA series

PC-controllableautomaticfully-automatic

Overview
ADAPTA capsule fillers combine proven dosing systems with advanced sensors and data evaluation to fill hard gelatin capsules with powders, pellets, tablets, minitablets and liquids. Machine learning-enabled control and fully integrated 100% weight checking reduce waste and maintain target performance for consistent product quality. A no-fill bypass prevents waste when capsule bodies are absent.

Machine versions
ADAPTA 100
The ADAPTA 100 delivers up to 100,000 capsules/hour. It offers exceptional accessibility and design flexibility, enabling up to 5-product dosing combinations (over 200 possible combinations). Equipped with direct 100% fill weight control, it ensures high precision for combination fills and powder microdosing.

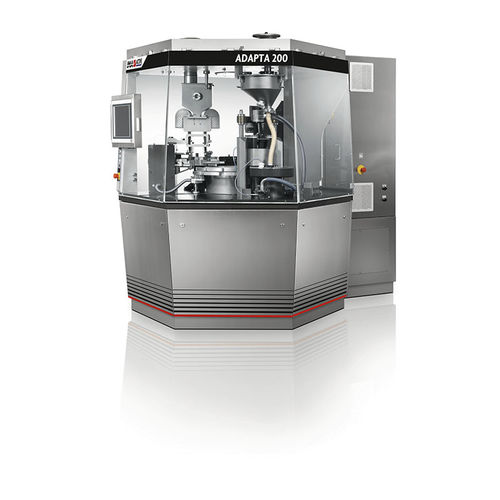

ADAPTA 200
The ADAPTA 200 achieves up to 200,000 capsules/hour. With a compact design it supports up to 3-product dosing combinations and superior accuracy even at low drug loads or with difficult-to-handle materials. It can be fitted with fully integrated 100% net weight control and individual channel identification.

Machine highlights

• Enhanced flexibility: reversible/interchangeable dosing units for fast plug-and-play changeovers between configurations.
• Multi-product dosing: designed to dose up to 3 products (up to 5 on request) into the same capsule.
• Total in-process control: optional individual product dosage checking and 100% gross/net weight control.
• Easy accessibility: design for straightforward cleaning and maintenance to support GMP workflows.

Advanced process control & Quality
Advanced sensors, evaluation algorithms and machine learning enable self-adjustment of process parameters to minimise waste and improve batch quality. Individual channel identification and single-reject capability ensure precise handling of out-of-spec products.

Media / Demonstrations
Available media include product video and gallery images showing empty capsule feeding, powder dosing, dosing groups, removable dosing units and 100% weight control at capsule exit.

Technical specifications

• Maximum output (capsules/hour): ADAPTA 100 = 100,000; ADAPTA 200 = 200,000
• Number of capsules per cycle: ADAPTA 100 = 12; ADAPTA 200 = 24
• Capsule size: 5 – 00EL (000*), DB E – A (AA*) (both versions)
• Maximum installed power (kW): ADAPTA 100 = 17; ADAPTA 200 = 18
• Aspiration: 9,500 litres/minute – 3,200 mm H2O (both versions)
• Compressed air: 115 litres/minute – 6 bar (both versions)
• Vacuum: ADAPTA 100 = 100 m3/h – 3 mbar (abs.); ADAPTA 200 = 165 m3/h – 3 mbar (abs.)
• Standard voltage: 400 V – 50 Hz (both versions)
• Weight (kg): ADAPTA 100 = 2,150; ADAPTA 200 = 2,500
