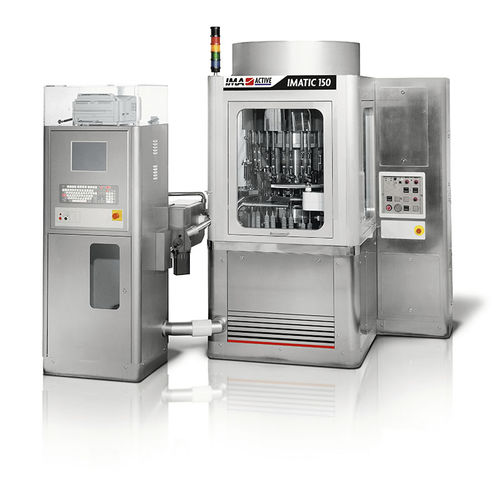

Automatic filling machine IMATIC

automatedrotaryin-line

Overview Designed to reach very high speeds, IMATIC dedicates more time to the most delicate phases of the filling process. The continuous movement of the unique turret system combines precision and reliability. Able to dose powder or pellets into hard gelatine capsules, the machine’s operating system is based on a single turret concept where a rotary motion of 180 degrees guides the capsules through all processing phases. IMATIC’s water recirculation system saves on consumption and reduces the disposal of dirty water at the end of the washing cycle, while granting optimal equipment performance.

Machine highlights

• Safe production flow: Complete separation between production and mechanical areas to prevent powder ingress to the lower machine section.
• Quality preservation: Careful handling of the dosed product to protect integrity and ensure consistent quality.
• Easy size changeover: Simple and quick changeover operations designed to reduce downtime and improve efficiency.
• Advanced automation: High level of automation for streamlined operations, reduced manual interventions and consistent process performance.
• Safe cleaning: Complete isolation of critical areas combined with an integrated Clean-In-Place (CIP) system to maintain hygiene and prevent cross-contamination.
• Accurate dosing: 100% in-line indirect control of product dosage available, ensuring precision, repeatability and reliability.

Technical data Model: IMATIC 100 | IMATIC 150
Number of stations: 24 | 36
Maximum speed (capsules/hour): 100,000 | 150,000
Sizes processed: 000–5, Supro A–E, DB, DB.AA, vegicaps (vegetable capsules)
Maximum installed power (kW): 37
CIP skid power (kW): 6
Standard voltage: 230/400 V – 3F – 50/60 Hz

Characteristics / technical specifications

• Product family / name: IMATIC (capsule filling machine)
• Model variants: IMATIC 100, IMATIC 150
• Number of stations: 24 (IMATIC 100) / 36 (IMATIC 150)
• Maximum production speed: 100,000 caps/hour (IMATIC 100) / 150,000 caps/hour (IMATIC 150)
• Sizes processed: 000–5, Supro A–E, DB, DB.AA, vegicaps (vegetable capsules)
• Maximum installed power: 37 kW
• CIP skid power: 6 kW
• Standard voltage: 230/400 V – 3F – 50/60 Hz
• Turret concept: single turret with 180° rotary motion guiding capsules through all processing phases
• Dosing capability: powder or pellets into hard gelatine capsules; 100% in-line indirect control of dosing
• Hygiene features: integrated Clean-In-Place (CIP) system and complete isolation of critical areas
• Water management: water recirculation system to reduce consumption and disposal
