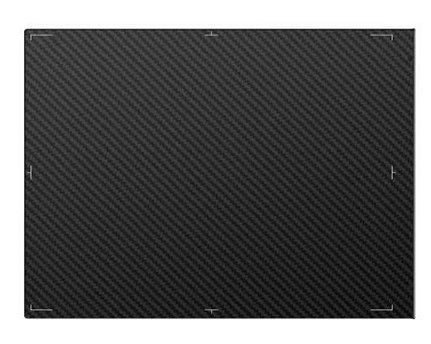

Veterinary radiography flat panel detector IMED 2530LX

portablewireless10 x 12

The IMED 2530LX is the world’s first flexible CsI TFT X-ray detector, specifically designed for equine imaging.
Its glass-free flexible substrate with a CsI scintillator makes it particularly robust, capable of withstanding drops from 1.2 meters. It features 100 μm pixels and incorporates advanced technologies such as:

• Solid and lightweight design (2 kg)
• IP66 intrusion protection
• Automatic X-ray detection (AED)
• Only 7–10 mm edge borders for optimal imaging of the hoof and stifle
• Long-lasting battery (up to 8.5 hours)

Technical specifications

• Technology: Flexible substrate
• Scintillator: CsI
• Active area: 25 x 30 cm
• Pixel matrix: 2500 x 3000
• Acquisition time: < 3.5 s
• Pixel size: 100 μm
• Spatial resolution: 4.3 lp/mm
• Acquisition mode: Automatic X-ray detection (AED)
• Dimensions: 269 x 362 x 15 mm
• Weight: 2 kg
