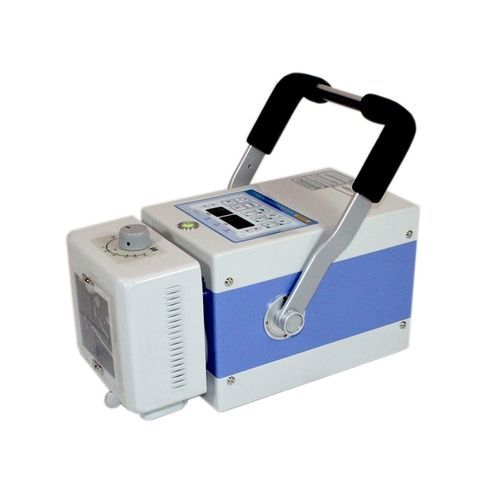

Veterinary radiography X-ray generator IMED 20BT

equipment-mountedwith power supply

Designed for taking X-rays anywhere, this portable generator is easily transportable and compact while providing high-quality imaging.
It can also be mounted on a stand and used in a fixed position.
The generator offers memory slots for your preferred kV and mAs settings.
The innovative lithium-polymer battery ensures long autonomy and allows up to 750 exposures on a single charge.


Technical Specifications

• Voltage – Current: 100 kV – 20 mA
• Maximum Power: 1.6 kW at 80 kV
• Focal Spot: 1.2 mm
• mAs Range: 0.4 mAs – 50 mAs (32 steps)
• kV Range: 40 – 100 kV (1 kV increments)
• Lamp: LED
• Laser Pointer: Integrated dual laser
• Weight: 11.2 kg
• Battery: Li-Polymer 4800 mAh
