Veterinary radiography acquisition system IMEDequi

portable

This system is designed for mobile equine veterinarians who work directly in stud farms, stables, or in the field. Lightweight and quick to set up, it allows you to acquire clear and reliable radiographic images autonomously, without compromising on image quality.

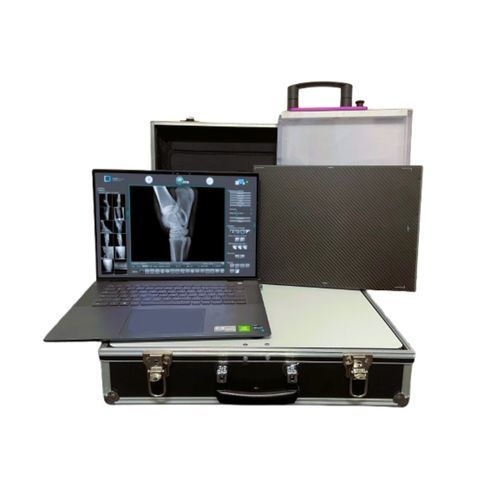

Standard Case Contents

• Carrying case: shock-resistant, compartmentalized, compact format
• Wireless flat panel detector: 25 × 30 cm or 35 × 43 cm, 100 µm
• Laptop computer: high-resolution screen, battery powered, lightweight
• IMEDview: image acquisition and processing software, visualization, DICOM export
• Portable X-ray generator: high-frequency, mains or battery powered

IMEDview Software:
Developed by IMEDSYS, IMEDview is an intuitive, reliable, and powerful software specifically designed for veterinary practice. It incorporates advanced post-processing algorithms to ensure optimal image quality.

• Customizable protocols for all examinations. Ability to create predefined exam series. Pre-programmed and adjustable exposure parameters
• Integrated tools: intuitive image processing and editing functions
• Easy to use: Smooth, fast interface. Numerous measurement tools (laminitis, etc.) and image editing features
• Easy sharing: Export X-rays directly from the software in DICOM or JPEG format. Send X-rays by email directly from the software
• Optimal quality: IMEDview delivers sharp, accurate, and perfectly readable images for more precise and reliable diagnoses

IMED 2530LX or IMED 3543MX Wireless Flat Panel Detectors
IMED 2530LX is the world’s first flexible CsI TFT X-ray detector designed for equine imaging. Thanks to its glass-free substrate, it is more robust and flexible and can withstand drops of up to 1.2 m. Its reinforced thin edges (7 to 10 mm) make hoof and stifle imaging easier. It offers 100 µm pixels, a lightweight design (2 kg), IP66 protection, automatic AED, and up to 8.5 hours of battery life.
IMED 3543MX is a CsI wireless cassette-format detector ideal for versatile applications. It also features 100 µm pixels, a lightweight housing, IP56 protection, and reliable low-power AED detection.




Technical Specifications – IMED 2530LX // IMED 3543MXTechnology : Flexible // Amorphous silicon
Scintillator: CsI // CsI
Active area: 25 × 33 cm // 35 × 43 cm
Pixel matrix: 2500 × 3300 // 3500 × 4300
Acquisition time: 3.5 s // 4 s
Pixel size: 100 µm // 100 µm
Spatial resolution: 4.3 lp/mm // 4.3 lp/mm
Acquisition mode: Automatic X-ray detection (AED) // Automatic X-ray detection (AED)
Dimensions: 269 × 362 × 15 mm // 384 × 460 × 15 mm
Weight: 2 kg // 3 kg




Portable X-ray Generator
Designed for radiography anywhere, these portable generators are compact, lightweight, and easy to transport while delivering excellent image quality. They can also be mounted on a stand for fixed use.
All three models feature programmable memories for kV and mAs settings and are equipped with an innovative lithium-polymer battery, providing up to 750 exposures per charge.




Technical Specifications – IMED 20 BT Lite // IMED 20 // IMED 20 BT
Voltage – Current: 90 kV – 20 mA // 100 kV – 20 mA // 100 kV – 20 mA
Max power: 1.6 kW at 80 kV // 1.6 kW at 80 kV // 1.6 kW at 80 kV
Focal spot: 1.2 mm // 1.2 mm // 1.2 mm
mAs range: 0.4 – 20 mAs (25 steps) // 0.3 – 50 mAs (22 steps) // 0.4 – 50 mAs (32 steps)
kV range: 50 – 90 kV (1 kV steps) // 40 – 100 kV (1 kV steps) // 40 – 100 kV (1 kV steps)
Lamp: LED // LED // LED
Laser pointer: Integrated dual laser // Integrated dual laser // Integrated dual laser
Weight: 7.2 kg // 9.8 kg // 11.2 kg
Battery: Li-polymer 4800 mAh // Mains powered // Li-polymer 4800 mAh
