Liquid flow meter Micro
for hospitalsin-line

Liquid flow meter - Micro - IMI Life Science - for hospitals / in-line

Add to favorites

Compare this product

fo_shop_gate_exact_title

Go to the IMI Life Science website for more information

Characteristics

Fluid type

for liquids

Applications

for hospitals

Connection type

in-line

Pressure

Min.: 15 bar
(217.6 psi)

Max.: 200 bar
(2,900.8 psi)

Height

2 in

Width

5 in

Depth

6 in

Description

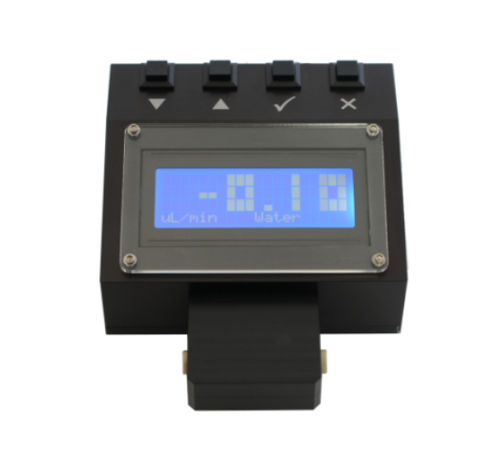

In-line, real time liquid flow measurement with data logging capability and fully adjustable data smoothing algorithms. In-line, real-time flow rate measurement Real-time data logging via USB cable Fully adjustable data smoothing Compatible with a wide variety of tubing sizes ranging from 1/8-inch to 360 micron capillary Can save multiple calibrations for different liquids on-board Arrives calibrated for aqueous solutions Factory calibration for common fluids is available upon request User can calibrate meter Product branding Flow range Nano: ±0–8000 nL/min Micro: ±0–120 μL/min Milli: ±0–1100 μL/min Milli +5: ±0–5.0 mL/min Accuracy Nano: 0.3% Micro: 0.15% Milli: 0.2% Milli +5: 0.2% repeatability Nano: 0.05% Micro: 0.01% Milli: 0.02% Milli +5: 0.02% Response Time - LS 40 Application Applicability Analytical Biosciences
