Mass flow meter FLATREG MFC

oxygenairCO2

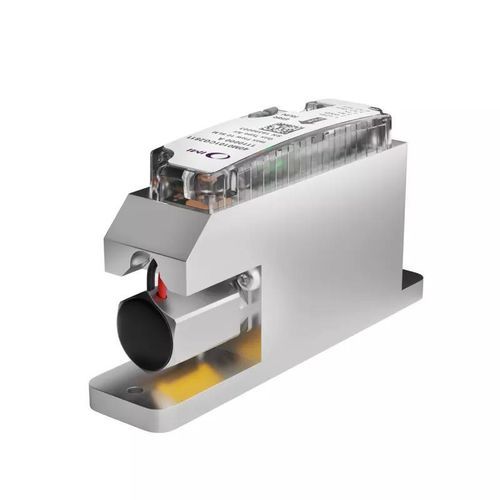

The FLATREG MFC is a compact mass flow controller designed for OEM integration, providing precise and stable mass flow control on the CHIPREG MFC 22 mm platform to reduce development complexity and shorten design cycles.

Key features:

• Built on CHIPREG MFC’s uniquely small 22 mm size — benchmark for OEM gas flow control
• Increased flow ranges: up to 40 ls/min
• Extended pressure range: up to 10 barg
• Custom variants available on request — e.g. enhanced leak tightness

Variants (selectable models):

• 40M0201CJ1811 311000 — 20 l/min — Manifold
• 40M0201CJ5811 311000 — 20 l/min — Inline G 1/4''
• 40M0401CJ1811 311000 — 40 l/min — Manifold
• 40M0401CJ5811 311000 — 40 l/min — Inline G 1/4''

Technical specifications:

• Flow range: 0-40 ls/min; 0-20 ls/min; custom flow range on request
• Operating gas: Air; CO2; N2; O2
• Accuracy: ±0.2% of full scale (0-10% of max flow); ±2.0% of reading (10%-100% of max flow)
• Operating voltage: 24 V d.c. ± 10%
• Pneumatic connections: Inline version (G1/4''); Manifold mount
• Electrical connection: JST Connector BM06B-GHS-TBT
• Analog input/output: 0 to 5 V d.c.
• Typical applications: Analytical; Applied Fluidics; Biosciences; Medical Devices
• Internal & external leak rate: Standard: <10^-2 mbar l/s (air) @ 7 barg; On-demand: <10^-6 mbar l/s (He)
• Quality: 100% of the devices are tested in production
