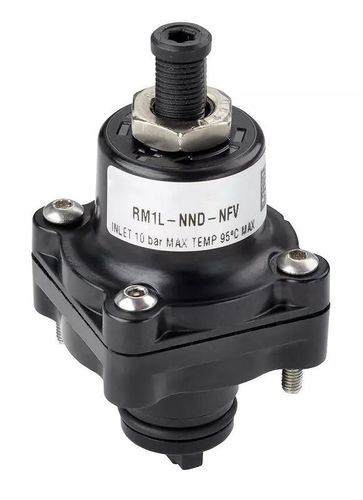

Oxygen pressure microregulator RM1

medicalG1/8adjustable-flow

Compact, lightweight precision pressure regulator designed for fine pressure adjustment and stable control in space-constrained systems. The RM1 provides high-resolution tuning and a small installation footprint for pneumatic circuits requiring oxygen compatibility.

Key features

• Miniature high-performance regulator for precise pressure control
• High-resolution adjustment with low hysteresis
• Optimized flow characteristics and low pressure drop
• Compatible with oxygen service
• Port options: M5, G1/8 or cartridge-style

Variants

• RM1H-NFV — Flow rate (max): 200 l/min
• RM1L-NCV — Flow rate (max): 500 l/min

Technical specifications

• Controlled pressure ranges: 0 to 0.35 bar (0 to 5 psi); 0 to 2 bar (0 to 29 psi); 0 to 2.75 bar (0 to 39.9 psi); 0 to 4 bar (0 to 58 psi)
• Flow examples by variant: RM1H — 200 l/min (max); RM1L — 500 l/min (max)
• Pneumatic connections: M5 or G1/8 (body versions); cartridge-style option available
• Designed for compatibility with oxygen service

Documentation

• Datasheet: LS_DS_RM1_en_0824.pdf
