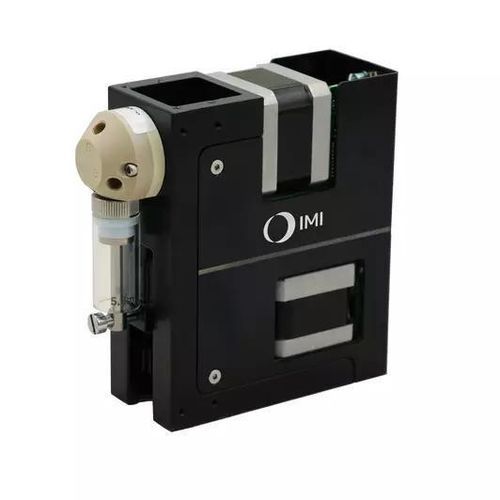

Research syringe pump EVO3

for biomedical researchchromatographylaboratory

Overview
The EVO3 is a programmable, maintenance-free syringe pump designed for precise liquid metering in laboratory and analytical environments. It features a 30 mm stroke driven by a stepper motor and precision lead screw and is available in two mechanical resolutions (3K, 24K). The unit can operate as a standalone controller or be integrated into complex systems.

Key features

• Programmable, maintenance-free liquid metering device
• 30 mm stroke driven by stepper motor and precision lead screw
• Mechanical resolutions: 3K and 24K steps
• Selectable operation as standalone controller or integrated module
• Available with or without advanced electronic controller

Technical specifications

• Stroke: 30 mm
• Resolutions: 3K, 24K steps
• Accuracy: < 1% at full-stroke dispense
• Precision: 0.50% CV at 1/10 dispense; 0.05% CV at full-stroke
• Speed: 2.5–2500 steps/s
• Syringe options: 50 µL to 5 mL
• Electrical connection: 15-pin DSUB (Power/COMM)
• Digital interfaces: RS-232, RS-485
• Life cycle: >2 million cycles

Applications

• Analytical instrumentation
• Bioscience laboratories
• Microfluidics and precision dosing systems

Product variants

• E303 (3K mechanical resolution)
• E324 (24K mechanical resolution)
