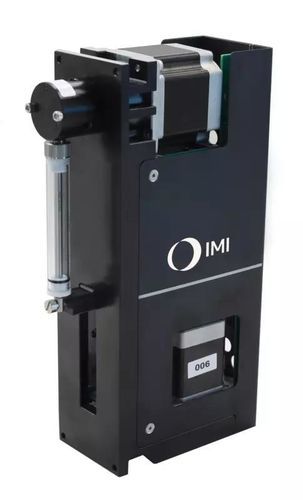

Biomedical research syringe pump EVO6for researchlaboratorymulti-channel
Add to favorites
Compare this product
Characteristics
- Applications
- for research, for biomedical research, laboratory
- Number of channels
- multi-channel
- Other characteristics
- programmable
- Syringe volume
Min.: 0 m³
(0 ft³)Max.: 0.00005 m³
(0.001766 ft³)
Description
Overview
Key features
Technical specifications
Applications
- Programmable, maintenance-free syringe pump for precision liquid metering in laboratory and medical settings.
- High lift force and valve torque ensure consistent dispensing and long-term performance.
Key features
- Programmable control via stepper motor and lead screw
- High accuracy and low coefficient of variation (CV)
- Compatible with syringes from 10 μL to 50 mL
Technical specifications
- Stroke: 60 mm driven by stepper motor and precision lead screw
- Mechanical resolutions: 6K and 48K steps
- Accuracy: < 1% at full stroke dispense
- Precision: 0.50% CV at 1/10 dispense; 0.05% CV at full stroke dispense
- Speed per stroke: 2.4 s to 40 min
- Syringe options: 10 μL to 50 mL
- Electrical connection: 15-pin DSUB Power/COMM
- Digital interfaces: RS-232, RS-485
- Life cycle: >2,000,000 cycles
Applications
- Analytical laboratories
- Biosciences and biotechnology workflows
- Medical device development and diagnostic applications
