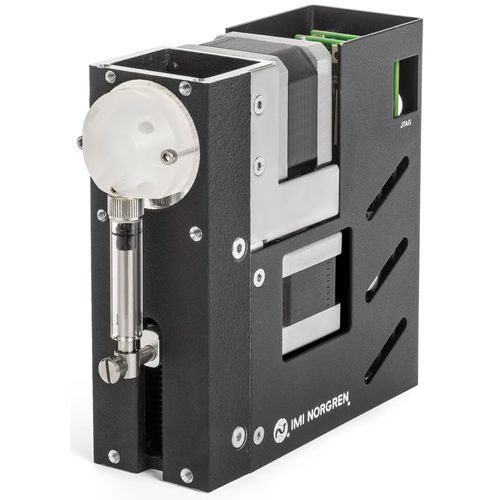

Liquids dosing unit Cadent™ 3

laboratoryprogrammable

A programmable, maintenance-free, precision liquid metering device featuring a 30mm stroke driven by a stepper motor and precision lead screw. It is available in three mechanical resolutions (6K, 12K, 24K) and offers exceptional precision, accuracy, and longevity. The pump can function as a standalone controller or integrate into complex systems. Programmable, maintenance free, precision liquid metering device 30 mm stroke driven via stepper motor and precision lead screw Available in three mechanical resolutions: 6K, 12K, 24K Highly flexible and versatile to meet a variety of system configurations Exceptional precision, accuracy and lifetime performance Available with or without an advanced controller Can be used as a standalone controller or integrated into more complex systems Resolutions 6K, 12K, 24K steps Accuracy ±0.3% at 1/10th dispense ±0.2% at full stroke dispense Precision 0.50% CV at 1/10th dispense 0.05% CV at full stoke dispense Linearity R > 0.9999 speed 0.0625 - 10,000 steps/sec Flow Rate Range Min: 0.008μL/min (with 50μL syringe) Max: 500mL/min (with 5mL syringe) Electrical connection 6 inputs - 2 Analog/Digital, 4 Digital 4 digital outputs Tamper pin Communicat Digital communication interfaces RS-232, RS485, CANbus Life cycle (mio) >5 million Application Applicability Analytical Biosciences
