Digital microscope HD-010-KIT-CAP
medicalinspectionmultipurpose

digital microscope
digital microscope
digital microscope
digital microscope
digital microscope
digital microscope
digital microscope
Add to favorites
Compare this product


Characteristics

Type
digital
Applications
medical, inspection, multipurpose, soldering
Configuration
tabletop
Light source
with LED light, white light
Options and accessories
with color camera, with LCD screen, zoom
Other characteristics
high-resolution

Description

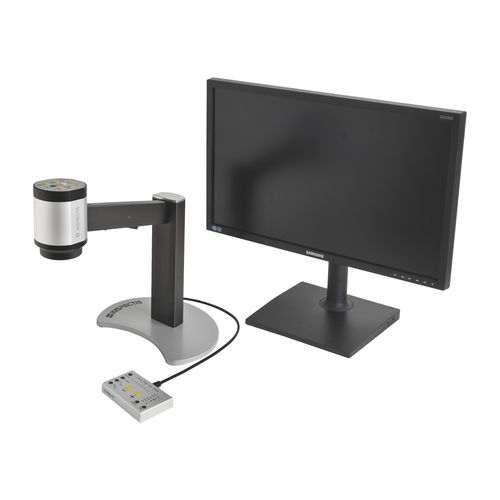

Inspectis C12 Capture Kit is an turn-key optical digital inspection system with 12:1 optical zoom, auto focus, integrated oblique illumination, SD-card image capture, Advanced Remote Control and 22″ LCD monitor. System’s standard optics with 2.2 – 26x magnification is comparable to common inspection microscopes. If further magnification is needed, extra Macro lenses can be added to magnify up to 80x. Produces crisp picture of your inspection objects directly on LCD monitor or PC. Designed for Ergonomic Use Inspectis C12 provides relief to eyes, neck and shoulders. The unique ergonomic design with 245mm working distance allows operators to sit comfortably in a good working position and carry out their optical inspection tasks efficiently. Optimized for optical inspection and repair of electronics PCBs Due to its oblique lighting system and large size image sensor pixel elements, C12 provides clean and sharp images of solder joints on electronic PCBs with minimum glare and reflections. An optional built-in laser pointer ( -L ) aims at the area of interest and assists in locating it on the screen. Inspectis C12 can also be ordered as ESD protected ( -E ) for required environments. Items included when you order HD-010-KIT-CAP: Inspectis C12, HD Digital Inspection Mccroscope 12x zoom, HDMI with SD-Card capture Inspectis Remote Camera Control with Advanced Adjustments 22″ Full HD LCD monitor Highlights Cost effective digital inspection system All-in-one and through plug-and-play Sharp image quality with quick auto-focus Built-in SD-card still image capture Fast 60 fps provides clear images without motion blur
