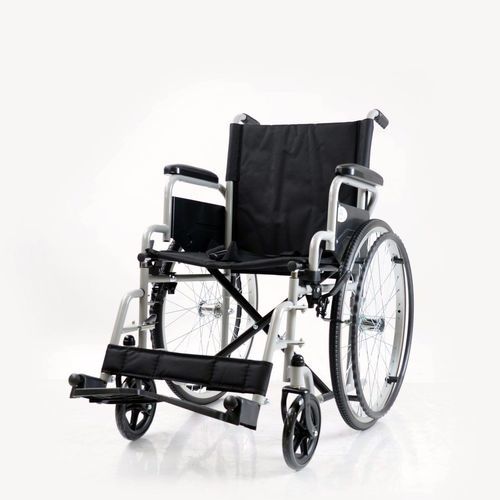

Manual wheelchair YK9031

outdoorindoorfolding

Overview
The YK9031 is a foldable manual wheelchair with a single cross-brace steel frame designed for daily mobility, institutional use, rehabilitation centers and home care programs. It combines a compact, portable folded width with standard 24″ rear wheels for easier indoor/outdoor propulsion and transport.

Key features

• Foldable steel frame with single cross brace and powder coating
• Flip-back desk-length armrests with PVC armpads
• Front casters: 8″ PVC; Rear wheels: 24″ spoke wheels with pneumatic PU tire
• Swing-away footrests with leg supports
• Seat and backrest: flame-retardant nylon with sponge padding
• Available seat widths: 40 cm (16″), 42 cm (17″), 45 cm (18″), 51 cm (20″)
• Optional: backrest half folding, attendant brakes, quick release, safety belt, anti-tipper wheels

Product Parameters (table)
SIZE | Overall Length (cm) | Overall Width (cm) | Overall Height (cm) | Overall Width Folded (cm) | Seat Width (cm) | Seat Depth (cm) | Back Height (cm) | Floor to Seat Height (cm) | Weight Capacity (kg) | Front Caster Spec. | Rear Wheel Spec. | G./N. Weight (kg) | Carton Size (cm)
16″ | 103 | 58 | 91 | 26.5 | 40 | 40 | 41 | 50 | 120 | 8″ | 24″ | 20.6 / 18.1 | 81*27*94
17″ | 103 | 60.5 | 91 | 26.5 | 42 | 40 | 41 | 50 | 120 | 8″ | 24″ | 20.8 / 18.3 | 81*27*94
18″ | 103 | 63 | 91 | 26.5 | 45 | 40 | 41 | 50 | 120 | 8″ | 24″ | 21.0 / 18.5 | 81*27*94
20″ | 103 | 68 | 91 | 26.5 | 51 | 40 | 41 | 50 | 135 | 8″ | 24″ | 22.5 / 20.0 | 81*27*94

Additional product information
The YK9031 is intended for routine mobility and institutional procurement. Verify size selection, local safety and procurement standards, and user requirements before purchase. B2B buyers should consider intended use scenario, seat width selection, optional accessories and after-sales support when specifying units for facilities or programs.

Technical specifications

• Model: YK9031
• Brand: INTCO Medical
• Material: Steel frame with powder coating
• Frame type: Single cross brace, foldable
• Seat widths available: 40 cm (16″), 42 cm (17″), 45 cm (18″), 51 cm (20″)
• Seat & back: Flame-retardant nylon with sponge
• Front caster: 8″ PVC tire
• Rear wheel: 24″ spoke wheel with pneumatic PU tire
• Armrest: Flip-back desk length with PVC armpad
• Footrest: Swing-away with leg support
• Optional accessories: Backrest half folding, attendant brakes, quick release, safety belt, anti-tipper wheels
• Weight capacity: 120 kg (16″/17″/18″), 135 kg (20″)
• Packed quantities: 130 pcs per 20" GP; 326 pcs per 40" HQ
• Typical carton size: 81 × 27 × 94 cm
