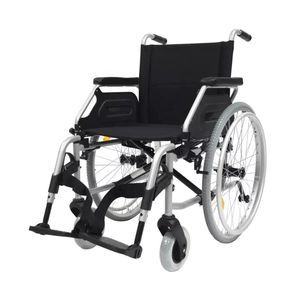

Manual wheelchair DOLY

indoorfoldingwith legrest

Overview
Lightweight manual wheelchair designed for daily mobility in clinical, institutional and home-care settings. Features include a half-folding backrest, quick-release rear wheels, attendant hand brakes and an anti-tipper for stability and transport.

Short description

• Manual wheelchair
• Backrest: half folding
• Quick-release rear wheels
• Attendant hand brakes
• Anti-tipper

Materials & Components

• Material: Aluminum
• Frame: Double cross braces, powder coating
• Front wheel: 6"/8", PU tires
• Rear wheel: 14"/22"/24" spoke wheels, PU tire, aluminum handrim
• Armrest: Fixed slope or detachable, PU armpad
• Seat and backrest: Mesh bottom upholstery with breathable cover
• Front fork: Plastic
• Footplate: Plastic (fixed or detachable)
• Seat width: 43 cm
• Seat depth: 42 cm
• Weight capacity: 120 kg

Key Features

• Multiple color options
• Lightweight, foldable frame for storage and transport
• Adaptable to multiple rear wheel sizes (14"/22"/24")

Product Parameters (table)
Header: Mode | Overall Length (cm) | Overall Width (cm) | Overall Height (cm) | Overall Width Folded (cm) | Seat Height (cm) | Front Caster Spec. | Rear Wheel Spec. | Net Weight (kg) | Carton Size (cm)
Fixed armrest & footrest - 82.5 | 59.5 | 91.5 | 25.5 | 48.5 | 6" | 14" | 10 | 87*26.5*75.5
Fixed armrest & footrest - 96 | 64.5 | 91.5 | 27 | 48.5 | 6" | 22" | 10.8 | 97*28*75
Fixed armrest & footrest - 98.5 | 64.5 | 94 | 27 | 51 | 8" | 24" | 11 | 99.5*28*77.5
Fixed armrest & detachable footrest - 82.5 | 59.5 | 91.5 | 25.5 | 48.5 | 6" | 14" | 10.1 | 66.5*26.5*75
Fixed armrest & detachable footrest - 96 | 64.5 | 91.5 | 27 | 48.5 | 6" | 22" | 10.9 | 76.5*28*75
Fixed armrest & detachable footrest - 98.5 | 64.5 | 94 | 27 | 51 | 8" | 24" | 11.1 | 79*28*77.5
Detachable armrest & footrest - 91.5 | 59.5 | 91.5 | 25.5 | 48.5 | 6" | 14" | 11 | 66.5*26.5*75
Detachable armrest & footrest - 99 | 64.5 | 91.5 | 28 | 48.5 | 6" | 22" | 11.8 | 76.5*29*75
101.5 | 66.5 | 94 | 28 | 51 | 8" | 24" | 12 | 79*29*77.5

Notes
The product is intended for daily mobility and institutional use. Verify the intended user profile, local safety requirements and procurement standards before purchase.

Technical specifications

• Model name: DOLY
• Brand: INTCO Medical
• Frame material: Aluminum with powder coating
• Frame type: Double cross braces (foldable)
• Backrest: Half folding
• Seat upholstery: Mesh bottom with breathable cover
• Armrest options: Fixed slope or detachable; PU armpad
• Footplate: Plastic (fixed or detachable)
• Front caster options: 6" or 8" PU
• Rear wheel options: 14", 22", 24" spoke wheels with PU tire and aluminum handrim
• Seat width: 43 cm
• Seat depth: 42 cm
• User weight capacity: 120 kg
• Multiple configurations affecting overall dimensions, net weight and carton size (see product parameters)
