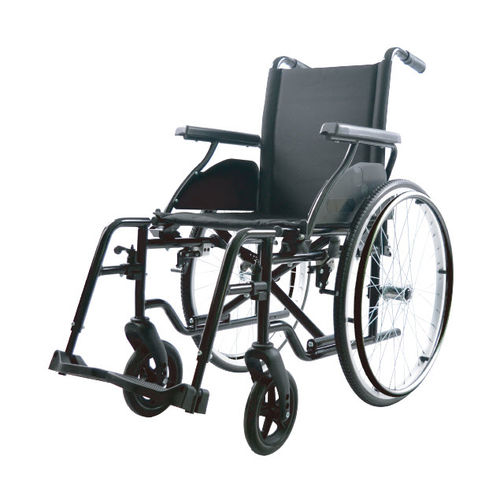

Manual wheelchair YK9045

indoorfoldingwith legrest

Product overview
The YK9045 is a manual wheelchair with a foldable steel frame designed for daily mobility, institutional use, rehabilitation centers and home-care programs. Optional functions are available to match user needs.

Key features

• Foldable steel frame for compact storage and transport
• Flip-back slope armrests to facilitate lateral transfers
• 8" PU front casters and 24" rear spoke wheels for reliable rolling performance
• Flame-retardant nylon seat and back with sponge padding
• Available seat widths 16" (41 cm), 18" (46.2 cm), 20" (51.1 cm); rated capacity 135 kg

Details

• Material: Steel
• Frame: Single cross brace, powder coating
• Front wheel: 8" PU caster
• Rear wheel: 24" spoke wheel, PU tire
• Armrest: Flip-back slope armrest with PU armpad
• Footrest: Swing-in and away footrest
• Seat and backrest: Flame-retardant nylon with sponge
• Packing: 112 pcs per 20" GP; 290 pcs per 40" HQ

Product Parameters (table)

• 16" | Overall Length: 111 cm | Overall Width: 58.4 cm | Overall Height: 95.5 cm | Overall Width Folded: 26 cm | Seat Width: 41 cm | Seat Depth: 41 cm | Back Height: 45 cm | Floor-to-Seat Height: 51 cm | Weight Capacity: 135 kg | Front Caster: 8" | Rear Wheel: 24" | G./N. Weight: 18.3/16.3 kg | Carton Size: 87*28*95 cm
• 18" | Overall Length: 111 cm | Overall Width: 63.5 cm | Overall Height: 95.5 cm | Overall Width Folded: 26 cm | Seat Width: 46.2 cm | Seat Depth: 41 cm | Back Height: 45 cm | Floor-to-Seat Height: 51 cm | Weight Capacity: 135 kg | Front Caster: 8" | Rear Wheel: 24" | G./N. Weight: 18.5/16.5 kg | Carton Size: 87*28*95 cm
• 20" | Overall Length: 111 cm | Overall Width: 68.4 cm | Overall Height: 95.5 cm | Overall Width Folded: 26 cm | Seat Width: 51.1 cm | Seat Depth: 41 cm | Back Height: 45 cm | Floor-to-Seat Height: 51 cm | Weight Capacity: 135 kg | Front Caster: 8" | Rear Wheel: 24" | G./N. Weight: 18.7/16.7 kg | Carton Size: 87*28*95 cm

Applications / Suitable for
Intended for daily mobility support, institutional procurement, rehabilitation facilities and home-care settings. When selecting a model, consider user profile, required seat width and applicable local safety or procurement standards.

Technical specifications

• Model: YK9045
• Material: Steel
• Frame type: Single cross brace, powder-coated
• Foldable: Yes (foldable steel frame)
• Front caster: 8" PU
• Rear wheels: 24" spoke wheels, PU tire
• Armrest: Flip-back slope armrest with PU armpad
• Footrest: Swing-in and away footrest
• Seat and back: Flame-retardant nylon with sponge
• Optional functions: Half-folding backrest, attendant brakes, safety belt, anti-tipper wheels
• Seat widths available (examples): 41 cm (16"), 46.2 cm (18"), 51.1 cm (20")
• Overall length (all sizes): 111 cm
• Overall widths: 58.4 / 63.5 / 68.4 cm
• Overall height (all sizes): 95.5 cm
• Floor-to-seat height (all sizes): 51 cm
• Weight capacity: 135 kg
• G./N. weight examples: 18.3/16.3 kg (16"), 18.5/16.5 kg (18"), 18.7/16.7 kg (20")
• Carton size (all sizes): 87*28*95 cm
• Packing quantity: 112 pcs per 20" GP; 290 pcs per 40" HQ
