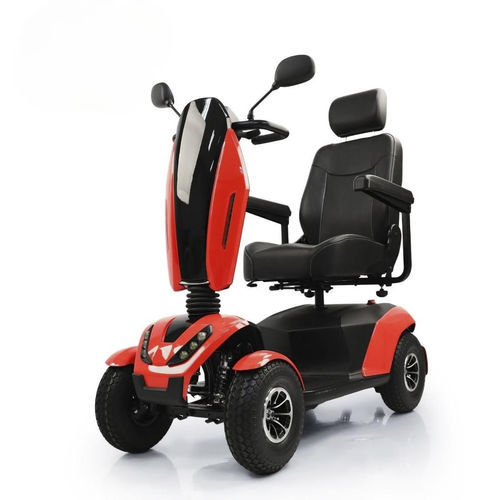

Electric mobility scooter GEMINI

for seniorsfor disabled people4-wheel

Overview
Electric mobility scooter intended for clinical and care environments and for individual users requiring extended range and high load capacity. Modular and adjustable seating and controls support varied patient body sizes and clinical needs. Detachable and foldable design facilitates transport and storage.

Key Features

• 13\" pneumatic tires with aluminum alloy hubs
• Adjustable handlebars, seat, backrest, headrest and armrests
• Two cup holders and delta tiller with dashboard
• Front and rear shock absorbers for improved ride comfort
• Detachable and foldable frame for transport and storage

Technical Specifications

• Controller: 160 A
• Motor: 450 W or 600 W with electromagnetic brake
• Slope capability: 10°
• Maximum speed: 15 km/h
• Range: 50 km (lead-acid 24V 75Ah)
• Battery: Lead acid 24V 75Ah
• Charger: 24V 10A
• Wheel: 13\" pneumatic tires with aluminum alloy hub
• Seat: PVC with sponge
• Maximum obstacle clearance: 50 mm
• Maximum user weight: 150 kg
• Suspension: Front and rear

Product Parameters

• Model: GEMINI
• Total width: 62.5 cm
• Total height: 133 cm
• Total length: 136.5 cm
• Seat height: 48.5–53.5 cm
• Seat width: 47 cm
• Seat depth: 43 cm
• Total mass (including/excluding battery): 135 / 100 kg
• Weight capacity (max user weight): 150 kg
• Carton size: 168 × 85 × 81 cm
