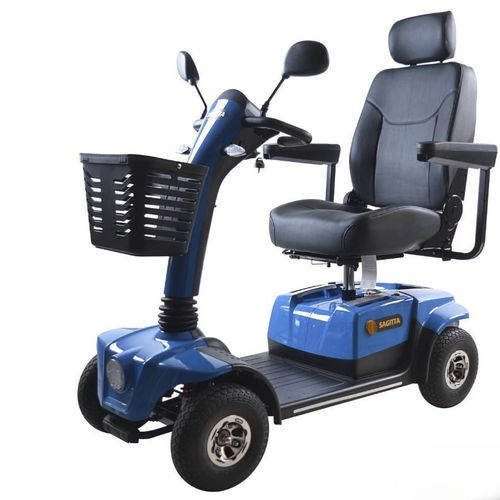

Electric mobility scooter SAGITTA-D

for seniorsfor disabled people3-wheel

Overview
The SAGITTA-D mobility scooter from INTCO Medical is designed for assisted mobility in clinical and care environments. It features a detachable five-piece construction for transport and storage, adjustable seating for user comfort and basic lighting and signaling for safe use.

Main features

• Detachable design: disassembles into five pieces for transport and storage
• Intuitive control panel with right/left thumb levers
• Comfort adjustable seating (PVC leather + sponge)
• Storage basket included
• Brake light and basic lighting
• Controller: Dynamic DR90
• Motor: 320W with electromagnetic brake
• Slope capability: 10°
• Maximum speed: 10 KM/H
• Range: 37 KM (24V 38Ah) or 45 KM (24V 52Ah)
• Battery options: 24V 38Ah / 24V 52Ah
• Wheels: 3.00-4 air tyres
• Charger options: 24V 4A / 24V 6A

Key Features (usage & controls)
Driving: push the right lever with the right thumb to move forward and the left lever with the left thumb to reverse. The electromagnetic brake engages when levers are released. Lighting is activated with a single control for simple operation. Speed is adjusted via a knob. Seat height and position can be adjusted to suit the user.

Product Parameters
Total Width (cm): 59
Total Height (cm): 96.5
Total Length (cm): 127
Seat Height (cm): 50–54
Seat Width (cm): 45
Seat Depth (cm): 45.5
Gross/Net Weight (kg): 98.6 / 93.6
Weight Capacity (kg): 150
Carton Size (cm): 156 × 61 × 62

Technical specifications

• Model name: SAGITTA-D
• Brand: INTCO Medical
• Controller: Dynamic DR90
• Motor power: 320W with electromagnetic brake
• Maximum slope: 10°
• Maximum speed: 10 KM/H
• Range: 37 KM (24V 38Ah) or 45 KM (24V 52Ah)
• Battery options: 24V 38Ah / 24V 52Ah
• Charger options: 24V 4A / 24V 6A
• Wheels: 3.00-4 air tyres
• Seat material: PVC leather + sponge; adjustable
• Detachable into five pieces for portability
• Lighting and brake light included
• Dimensions (L×W×H): 127 cm × 59 cm × 96.5 cm
• Seat dimensions (H×W×D): 50–54 cm × 45 cm × 45.5 cm
• Gross/Net weight: 98.6 kg / 93.6 kg
• Weight capacity: 150 kg
• Carton size: 156 × 61 × 62 cm
