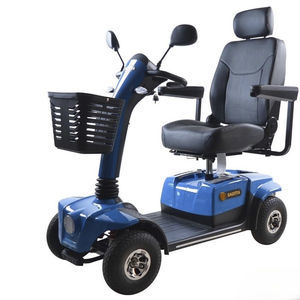

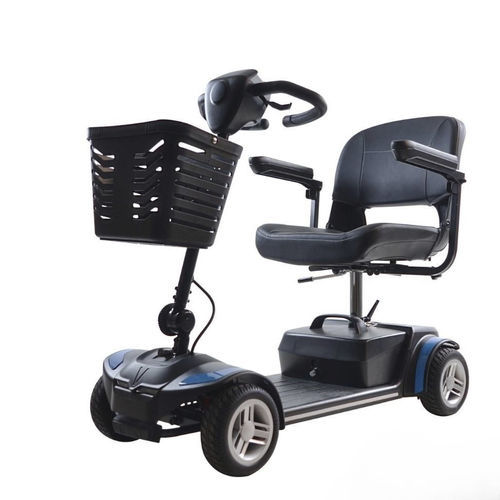

Electric mobility scooter LIBRA-D

4-wheelwith basket

Overview
Compact electric mobility scooter intended for short trips, errands and community access. Easily disassembled into five pieces for transport and storage. Delta tiller with integrated dashboard, 360° rotatable ergonomic seat, storage basket and position light; rearview mirror available as an option.

Operation notes
Forward: push the right lever with the right thumb. Reverse: push the left lever with the left thumb. Electromagnetic braking system engages when controls are released. Check steering and brakes before each use.

Technical features

• Controller: Dynamic 50A
• Motor: 270W with electromagnetic brake
• Slope capability: 6°
• Max speed: 8 km/h
• Range per charge: 16 km
• Battery: Lead acid 24V 12Ah
• Wheel: 8" black PU tyre
• Charger: 24V 2A
• Seat: PVC + sponge, 360° rotatable ergonomic seat

Product Parameters
Total Width(cm) | Total Height(cm) | Total Length(cm) | Seat Height(cm) | Seat Width(cm) | Seat Depth(cm) | G./N. Weight(kg) | Weight Capacity(kg) | Carton Size(cm)
48.5 | 88 | 108.3 | 51-54.5 | 43.5 | 38 | 39.5/35.5 | 136 | 113*50.5*53

Notes
Designed for short-distance mobility and community use. Verify user profile, local safety requirements and procurement specifications before purchase. Battery is sealed lead-acid; consider weight and transport restrictions. For requests on accessories (rearview mirror, basket) or customization, contact the supplier.

Technical specifications

• Brand: INTCO Medical
• Model: LIBRA-D
• Category: Scooter / Mobility scooter
• Controller: Dynamic 50A
• Motor power & brake: 270W, electromagnetic brake
• Maximum gradient: 6°
• Top speed: 8 km/h
• Range per charge: 16 km
• Battery type & capacity: Lead acid, 24V 12Ah
• Wheel size & tyre: 8", black PU tyre
• Charger specification: 24V 2A
• Seat: 360° rotatable ergonomic seat, PVC + sponge
• Disassembly: Easily disassembled into five pieces
• Dimensions (L×W×H): 108.3 × 48.5 × 88 cm
• Seat dimensions: Height 51–54.5 cm, Width 43.5 cm, Depth 38 cm
• Gross/Net weight: 39.5 / 35.5 kg
• Weight capacity: 136 kg
• Carton size: 113 × 50.5 × 53 cm
