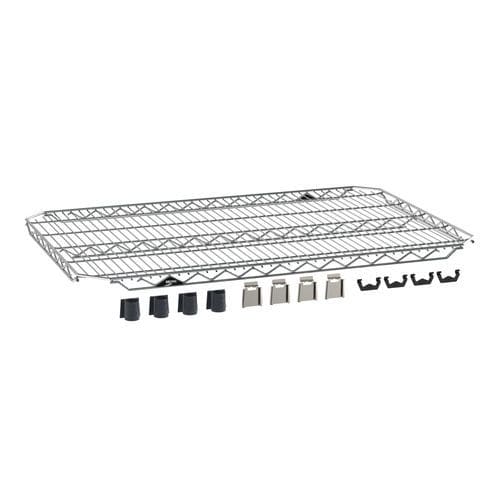

Modular shelf Super Erecta EZ-ADD

wirestainless steelrail-mounted

Product descriptionQuickly add additional storage to existing Metro wire shelving with the Super Erecta EZ-ADD Wire Shelf. Designed for retrofit installation, the EZ-ADD shelf installs without dismantling the unit to reduce downtime and simplify reconfiguration.

Key features

• Patent-pending one-piece polymer collar with a built-in bead that captures the groove in a 1" (25 mm) Super Erecta SiteSelect post.
• Stainless mounting plate provides a secure fit for the collar assembly and holds the shelf in position.
• Shelf can be installed flat or slanted (up to 8°).
• Lock clips included and required for slanted installations; lock clips optional for flat installations.
• Rated for a 400 lbs. (181 kg) load per shelf, evenly distributed.

Compatibility / applications

• Compatible with Super Erecta, Super Adjustable Super Erecta, and Super Erecta Pro shelving systems.
• Suitable for stationary and mobile shelving, security shelving, and track-mounted shelving solutions.
• EZ-ADD shelves must be used within a Super Erecta shelving unit with four posts and at least two traditional shelves located at the top and bottom of the unit.

Available sizes

• 18x36
• 18x48
• 18x60
• 24x36
• 24x48
• 24x60

Technical specifications

• Product Name: Metro Super Erecta EZ-ADD Wire Shelf, Chrome
• Part Number / SKU: EZA-NC
• Number of Shelves: 1
• Load Capacity: 400 lbs. (181 kg) per shelf, evenly distributed
• Material: Steel (shelf); polymer collar; stainless mounting plate
• Finish: Chrome
• Color: Silver
• Mounting: Captures 1" (25 mm) Super Erecta SiteSelect post groove; stainless mounting plate secures collar assembly
• Installation: Can be installed flat or slanted up to 8°; slanted installations require included lock clips
• Compatibility: Super Erecta, Super Adjustable Super Erecta, Super Erecta Pro
• Warranty: 1 year (product free from defects in material and workmanship under normal use, service and maintenance for one (1) year from date of shipment)
