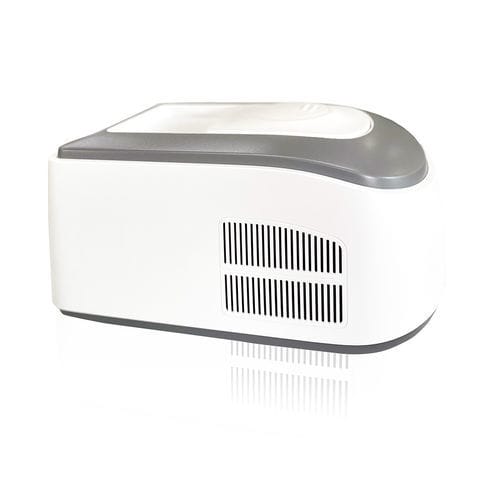

Real-time PCR system STC-96A

96-wellwith USB port

Innovative hardware design brings outstanding performance of the STC-96A Real-Time PCR system, of which the temperature uniformity across 96 wells is within a remarkable 0.1℃. This uniformity meets all your needs for highly precise diagnostic and study use, including High-Resolution Melting Curve (HRM) applications. Features Precise temperature control Well-to-well uniformity with an accuracy of 0.1℃ Accurate results in fast speed A super-fast heating/cooling rate of up to 4.0℃/sec No crosstalk calibration needed Professional optical filter combinations eliminate crosstalk between FAM, HEX, ROX and CY5 channels Quality Commitment 18-month warranty, long-lasting and maintenance-free LEDs applied Consumable 0.2ml PCR tubes, 8-tube strips, 48-well plates Parameters Run time <50 mins Max ramp rate 4.0℃/sec Temperature accuracy and uniformity 0.1/℃ Heating and cooling method Peltier Temperature control mode Tube control/block control Excitation Source LED (maintenance-free) Detector High sensitivity photoelectric sensor Sensitivity 1 copy Reproducibility CV<0.5% Dynamic range 100 - 1010 copies/well detectable Excitation range CH1-CH4: 470-630 nm; CH5/CH6: customer-made Detection range CH1-CH4: 510-665 nm; CH5/CH6: customer-made Dyes and probes FAM™/SYBR Green®; VIC®/HEX™/JOE™/TET™; ROX™/Texas Red®; CY5™
