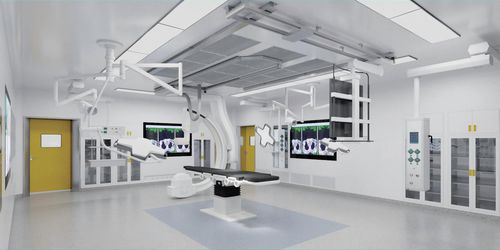

Operating room

modularmedicalstainless steel

01 The steel frame structure is made of 1.2mm and 1.5mm square tube keels,and 4#angle iron is purchasedand manufactured on site,with rust prevention treatment applied 02 Wall panels shall be made of 1.2mm,1.5mm thick electrolytic steel plates or 1.0mm,1.2mm thick stainlesssteel plates;The inner core material is made of 9.5mm thick gypsum board;Using inorganic adhesive forbonding 03 Wall panels shall be made of 1.2mm,1.5mm thick electrolytic steel plates or 1.0mm,1.2mm thick stainlesssteel plates;The inner core material is made of 9.5mm thick gypsum board;Using inorganic adhesive forbonding 04 R300mm ball heads are used around the operating room,and R300M arc plates are used as transitionsbetween walls and roofs 05 Generally,W1500xH2100 is reserved for the main entrance of the operating room,and W900xH2100 isreserved for the small doo 01Modular wall panels,energy-saving,easy to process,and easyto transport;The installation of the wall panel is simple andconvenient,and it is easy to replace it after damage 0250x30 square tube keel is easy to purchase 03All equipment is flush with the wall,without dead corners,andis not prone to dust accumulation 04Adopting an R300MM circular arc plate,achieving a perfecttransition between walls and walls,as well as between walls androofs,without easy accumulation of dust,and increasing theeffective utilization area of space 05All partitions between wall panels or between wall panels andequipment are filled with imported neutral weather resistantadhesive,which is durable,non debonding,and has good airtightness 06Color can be chosen,with three colors for ceiling,wall,and floor,providing a visual distinction
