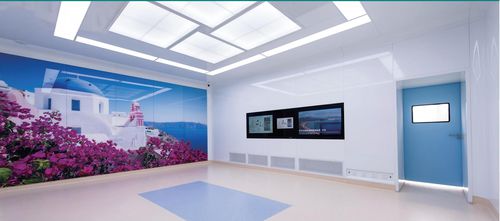

Operating room SNAP FIT

modularmedicalstainless steel

01 The walls and walls,as well as the walls andtop surfaces,are designed with R150mmaluminum alloy profiles with circular arcs02 1.0mm thick electrolytic steel plate isselected for the wall surface layer03 The overall surface layer is flat,and theflatness between the walls is within 1mm04 The gap between the wall and the wallshould be controlled within 1mm05 The joints between walls and corners aresealed with mold proof sealant,filled withpolyurethane foam,which has good airtightness,sound insulation,and thermalinsulation performance06National fire protection level A 07Environmentally friendly free formaldehydecontent less than or equal to 0.02g/1000g 08The surface materials of the wall panelstructure can be selected:various metalplates,PET plates,inorganic pre coatedplates,glass,stone,etc 09The core materials of the wall panel structurecan be selected:aluminum honeycomb,paper honeycomb,rock wool,glassmagnesium board,gypsum board,etc 10High structural strength,allowing peopleto walk on the suspended ceiling withoutsuspension reinforcement or support 11The suspended ceiling adopts H-shaped andT-shaped buckles to achieve self-locking,andthe structure is fastened to form a wholeoperating room with high seismic strength WALL PANEL CHARACTERISTICS 01High integration:The overall design concept makes theoperating room like a washing machine,powered onand ready to use,breaking the inherent concept of longconstruction cycles and complex processes in traditionaloperating rooms 02Modular design:industrial production ensures quality,installation standardization,and avoids installationproblems caused by the construction party
