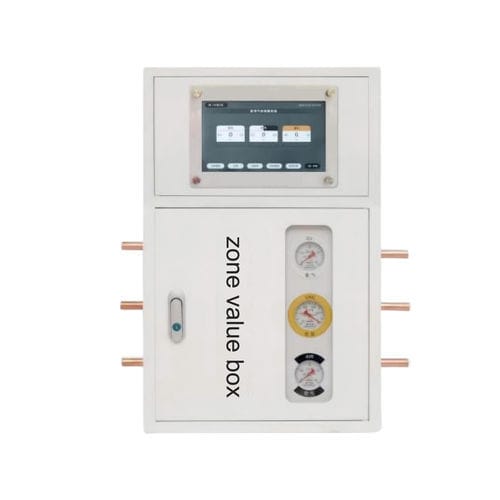

Medical gas valve FY-VBFMX

medicalbrassmodular

1.Multiple pipe diameters are available,and 1-6 gas control channels can be designedaccording to specific requirements; 2.The pipeline can be made of copper pipe or 304 stainless steel pipe,with a layout ofupper inlet and upper outlet or left inlet and right outlet,suitable for different installation environments;Medical gas pressure monitoring alarm gas valve box 3.The pipeline is connected by a three piece stainless steel ball valve or a union typecopper ball valve,which has reliable air tightness,easy maintenance,and effectivelyprevents gas leakage;Gas valve box 4.The pipeline has undergone standard degreasing and cleaning; 5.Each gas path adopts ISO32 standard color identification gas; 6.Applicable environmental temperature :-20℃~60℃,environmental humidity:10%~95%; 7.Oxygen,air(respiration),laughing gas,and carbon dioxide should be able to withstand apressure of 0.8MPa without leakage; 8.Nitrogen and power air should be able to withstand a pressure of 1.2MPa without leakage 9.Negative pressure should be able to withstand a pressure of -0.075MPa without leakage; 10.Customizable according to requirements, with optional digital or LCD display alarm boxes,flow meters,and other devices
