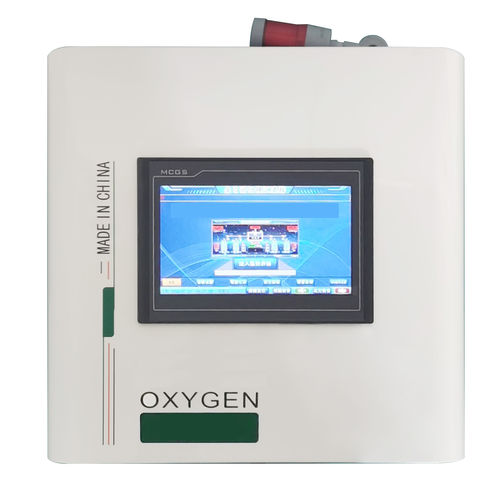

Medical gas manifold FY-PG

for hospitalsautomaticswitch-over

The fully automatic switching first level control box is mainly suitable for medical center oxygen supply. The gas supply box of CU operating room adopts a circular arc design, which is compact and generous, Easy to install, pressure sensors are used internally to collect signals and transmit them to the intelligent controller host to control the switching of the three-way electric ball valve. When the pressure is insufficient, the intelligent controller is used to switch the three-way electric ball valve The pre written program of the controller host can be used to automatically switch between two sets of gas cylinders to achieve continuous gas supply, with digital display of left and right gas cylinders, pressure, and outlet pressure MADEIN CHINA Power, simultaneous sound and light alarm, fully automatic switching busbar device specially designed for automatic switching between two sets of gas sources in the busbar without the need for any manual operation Fully automatic intelligent control device for regulation. Automatic switching system section Closed metal box, anti-interference On site signal lights indicate the working status, with bottle replacement alarm function Automatic switching valve directional control External filter, easy to replace filter element pipe section The pipeline system adopts silver welding to prevent leakage Blind plugs are used at the ends of the pipeline to meet expansion needs The system is equipped with a gas filtration device that can filter dust from the gas Reserved pressure switch interface The entire system has undergone withstand voltage testing and is safe, reliable, wall mounted or horizontally mounted
