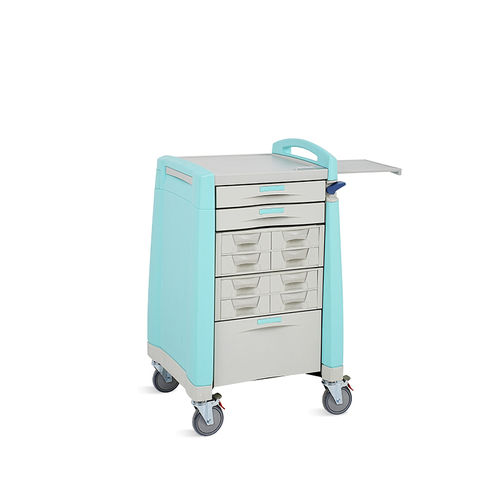

Medical cart SKR058-NT

surgicalfor general purposesmedicine

Overview
The SKR058-NT nursing trolley is designed for medication distribution, bedside nursing and patient management in hospitals and clinics. It combines removable medicine boxes, lockable drawers, a hidden pull-out writing board and a collapsible working table with silent, anti-winding medical casters. The unit is built on a steel-aluminum support frame with ABS and HDPE components for easy cleaning and reliable service life.

Highlights

• Design: Compact, stable structure with easy installation and practical color and styling choices for clinical environments.
• Drawer configuration: Seven-layer drawer layout with internal small compartments for multi-item classification and easy access.
• Medicine boxes: Transparent acrylic modular grids for organising and quick identification of first-aid and routine medicines; boxes are removable and combinable.
• Slide system: High-strength three-section silent damping slides with hydraulic slow-close at final travel to reduce impact on closure.
• Working table: Foldable writing/work board, dimensions 340 × 250 mm for documentation or laptop use.
• Central lock: Sealed handle enabling central locking of five drawers simultaneously for controlled access.
• Casters: Four 5-inch silent, anti-winding casters (two with brakes) providing smooth manoeuvrability and high load capacity.
• Right-side features: Ergonomic handle and hidden pull-out writing board on the right side for operator convenience.

Technical parameters

• Cart dimensions: 630 × 600 × 1000/1100 mm ±10 mm
• Worktop dimensions: 460 × 500 mm ±10 mm
• Frame: Steel-aluminum support frame
• Materials: ABS and HDPE
• Front configuration: 3 drawers + 2 sets of medicine boxes (total 8 medicine boxes), central control lock
• Drawer layout: 2 small drawers (front height 80 ±5 mm) + 1 large drawer (front height 250 ±5 mm); all drawers fitted with soft-close rails and internal dividers
• Medicine boxes: Transparent acrylic grids, front height 70 ±5 mm; freely combinable and removable
• Working table: Collapsible writing board 340 × 250 mm
• Drawer slides: Three-section silent damping slides with hydraulic slow-close
• Handle: Sealed handle locking five drawers simultaneously (central control)
• Casters: Four 5-inch silent anti-winding casters (2 with brakes)
