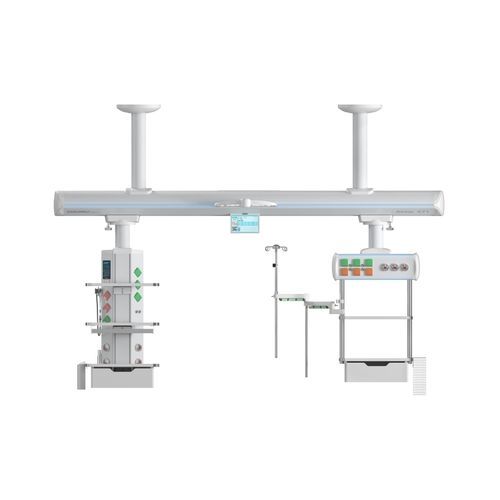

Ceiling-mounted medical pendant AInno X71

ICUoperating roomarticulated

Procurement Highlights

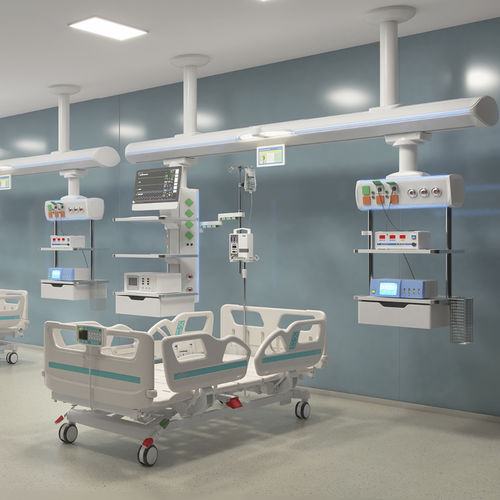

The AINNO X71 ICU bridge ceiling pendant is engineered for ICUs, NICUs, PICUs and other critical care areas. It features a 3000 mm bridge, 300 kg hanging-bridge load capacity, integrated medical gas outlets, multiple power sockets, network connectivity and dedicated instrument platforms to support organized critical-care workflows.

Wet and Dry Area Separation
The pendant separates high-voltage power, low-voltage power and medical gas piping to clarify system layout, reduce electrical interference and prevent contact between electrical arcs and combustible gases, supporting a safer clinical environment.

High‑Strength Instrument Platform
The one-piece aluminium-alloy instrument platform is high-strength, corrosion-resistant and easy to clean. A recessed anti-slip tabletop secures instruments and devices and supports orderly bedside equipment management.

Telescopic Extension Arms
Two-section telescopic extension arms accommodate infusion poles and pump stands, enabling flexible positioning of equipment according to bedside workflow and room layout.

Silent Drawer System
Quiet self-priming drawer slides enable smooth daily operation and organised storage of clinical accessories. Optional sensor-activated drawer lighting is available for improved visibility during procedures.

Optional Accessories

• Stainless steel basket — open storage for frequently used clinical items
• Suction tube box — orderly storage for suction tubing at the bedside
• Drawer divider box — internal drawer separators for small accessories
• Computer keyboard drawer — supports bedside documentation and workstation setup
• Flashlight and placement box — dedicated storage for auxiliary lighting tools
• Stethoscope hanger — keeps basic examination tools close to the pendant workstation

Detailed Parameters (table)
Model: AINNO X71
Operating power supply: AC 220V, 50Hz
Input power: 6 KVA
Bridge body length: 3000 mm
Horizontal box size: Length 1000 mm
Vertical box length: 1000 mm
Left and right horizontal stroke: 500 mm
Rotation angle: 340°
Hanging bridge load-bearing capacity: 300 kg
Instrument platform load-bearing capacity: 80 kg
Protection class: IP20
Fire protection class: UL94‑V1
Horizontal box: 1 pc
Vertical box: 1 pc
Bridge: 1 section
Mechanical braking system: 1 set
Medical gas (Horizontal box): O2 x2, AIR x1, VAC x1
Medical gas (Vertical box): O2 x2, AIR x1, VAC x1
Instrument platform (Horizontal box): 2 layers
Instrument platform (Vertical box): 3 layers
Power outlets (Horizontal box) (220V/10A): 6 pcs
Power outlets (Vertical box) (220V/10A): 6 pcs
Network interface RJ45 (Vertical box): 1 pc
Equipotential terminals (Horizontal box): 4 pcs
Equipotential terminals (Vertical box): 4 pcs
Drawers: Horizontal (Horizontal box): 1 pc
Drawers: Horizontal (Vertical box): 1 pc
Extension arm (Horizontal box): 1 set
Infusion stand (Horizontal box): 1 set
Infusion pump stand (Horizontal box): 1 set
Boom hub (Horizontal box): 1 pc

Technical specifications

• Model: AINNO X71
• Bridge body length: 3000 mm
• Hanging bridge load capacity: 300 kg
• Instrument platform load capacity: 80 kg
• Rotation angle: 340°
• Horizontal & vertical box lengths: 1000 mm each
• Horizontal stroke (left/right): 500 mm
• Operating power supply: AC 220V, 50Hz
• Input power: 6 KVA
• Protection class: IP20
• Fire protection: UL94‑V1
• Medical gas outlets (each box): O2 x2, AIR x1, VAC x1
• Power outlets per box (220V/10A): 6 pcs
• Network interface: RJ45 (vertical box) x1
• Equipotential terminals: 4 pcs per box
• Included accessories: instrument platforms, drawers, extension arm, infusion stand, infusion pump stand, boom hub
